Запчасти Case IH FARMLIFT 632 (35.359.AJ[06]) - CONTROL VALVE, SPOOL, TELESCOPIC SECTION (35) - HYDRAULIC SYSTEMS

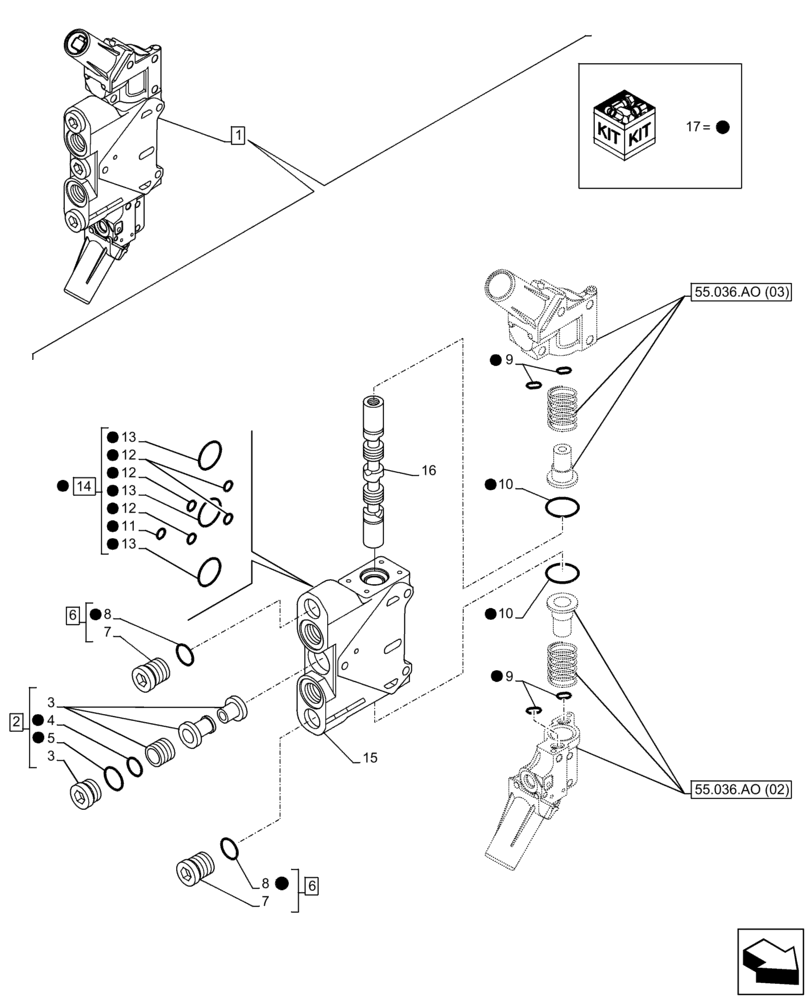

Схема запчастей Case IH FARMLIFT 632 - (35.359.AJ[06]) - CONTROL VALVE, SPOOL, TELESCOPIC SECTION (35) - HYDRAULIC SYSTEMS
6
4
17
17
17
17
7
13
5
7
3
17
17
10
13
1
12
6
8
17
17
16
12
9
17
9
17
17
11
17
15
17
55.036.ao (02)
55.036.ao (03)
14
3
17
8
2
10
12
13
17
17

Артикул

Название

Примечание

Количество

1

47568595

CONTROL VALVE

ASSY, Incl 2 - 16

1шт.

See Telescopic Section Components also in Figures 55.036.AO (02), 55.036.AO (03)

1шт.

2

47569285

COMPENSATOR

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Compensator, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2 or in 17

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2 or in 17

1шт.

6

47571307

PLUG

ASSY, Incl 7, 8

2шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

2шт.

8

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 6 or 17

2шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 17

2шт.

10

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 17

2шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 14

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 14

4шт.

13

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 14

3шт.

14

47571308

SEAL KIT

ASSY, Incl 11 - 13

1шт.

15

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Poppet, Incl in 1

1шт.

17

47571314

SEAL KIT

Kit, Incl 4, 5, 8 - 14

1шт.

Выбрано товаров: 18
