Запчасти Case IH FARMLIFT 632 (35.359.AJ[05]) - CONTROL VALVE, SPOOL, AUXILIARY SECTION (35) - HYDRAULIC SYSTEMS

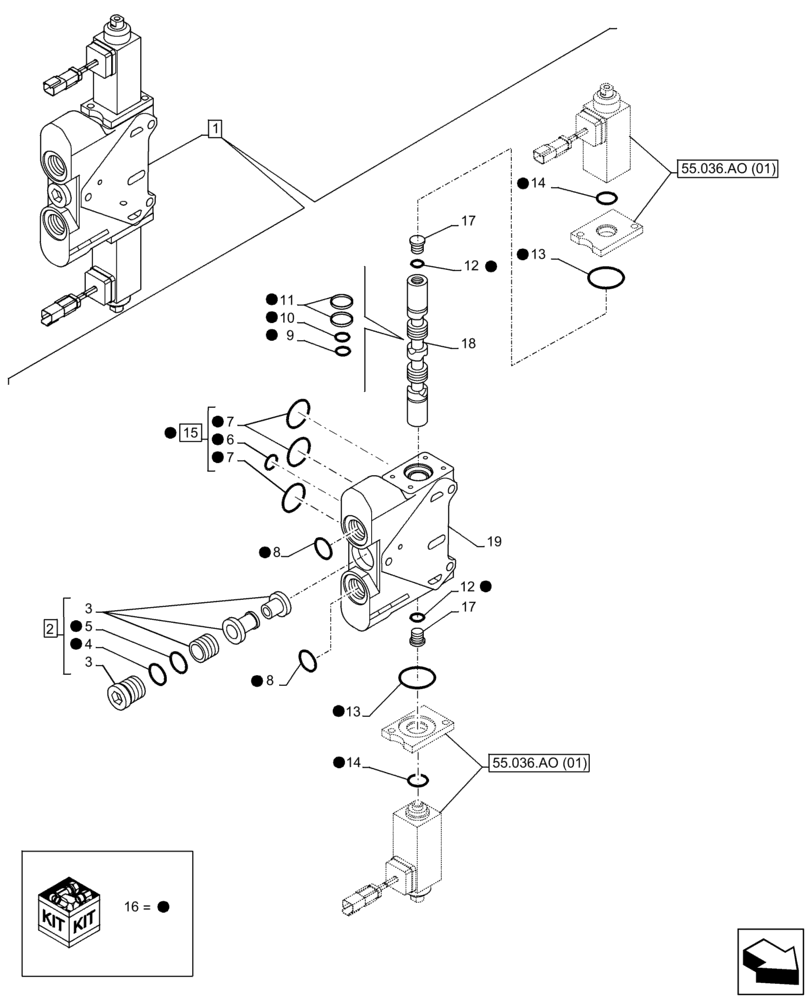

![Схема запчастей Case IH FARMLIFT 632 - (35.359.AJ[05]) - CONTROL VALVE, SPOOL, AUXILIARY SECTION (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/caseih/5217759.png)
№
Артикул
Название
Примечание
Количество
1
47568594
CONTROL VALVE
ASSY, Incl 2 - 19
1шт.
See Auxiliary Section Components also in Figure 55.036.AO (01)
1шт.
2
47569285
COMPENSATOR
ASSY, Incl 3 - 5
1шт.
3
NSS
NOT SOLD SEPARAT
Compensator, Incl in 2
1шт.
4
NSS
NOT SOLD SEPARAT
O-Ring, Incl in 2 or in 16
1шт.
5
NSS
NOT SOLD SEPARAT
O-Ring, Incl in 2 or in 16
1шт.
6
NSS
NOT SOLD SEPARAT
O-Ring, Incl in 15
1шт.
7
NSS
NOT SOLD SEPARAT
O-Ring, Incl in 15
3шт.
8
NSS
NOT SOLD SEPARAT
O-Ring, Incl in 16
2шт.
9
NSS
NOT SOLD SEPARAT
O-Ring, Incl in 16
1шт.
10
NSS
NOT SOLD SEPARAT
O-Ring, Incl in 16
1шт.
11
NSS
NOT SOLD SEPARAT
Seal, Incl in 16
2шт.
12
NSS
NOT SOLD SEPARAT
O-Ring, Incl in 16
2шт.
13
NSS
NOT SOLD SEPARAT
O-Ring, Incl in 16
2шт.
14
NSS
NOT SOLD SEPARAT
O-Ring, Incl in 16
2шт.
15
85825473
SEAL KIT
ASSY, Incl 6, 7
1шт.
16
47569289
SEAL KIT
Kit, Incl 4 - 15
1шт.
17
NSS
NOT SOLD SEPARAT
Plug, Incl in 1
2шт.
18
NSS
NOT SOLD SEPARAT
Poppet, Incl in 1
1шт.
19
NSS
NOT SOLD SEPARAT
Housing, Incl in 1
1шт.
Выбрано товаров: 20
