Запчасти Case IH FARMLIFT 632 (35.359.AJ[02]) - CONTROL VALVE, SPOOL, INLET SECTION (35) - HYDRAULIC SYSTEMS

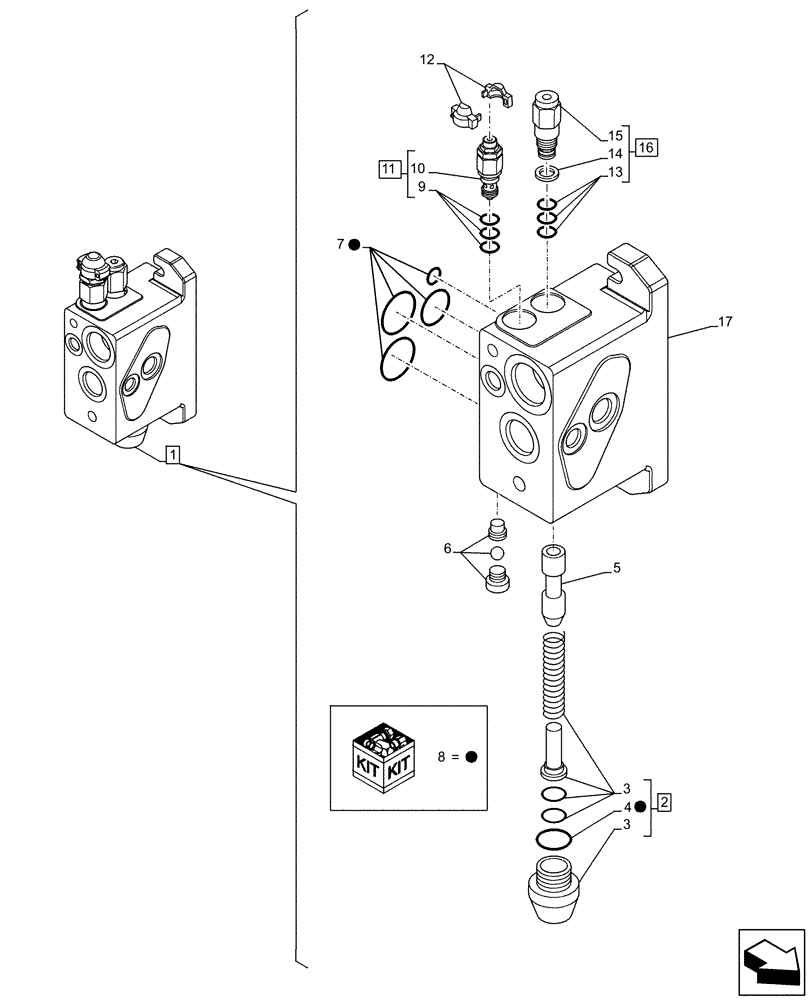

Схема запчастей Case IH FARMLIFT 632 - (35.359.AJ[02]) - CONTROL VALVE, SPOOL, INLET SECTION (35) - HYDRAULIC SYSTEMS
13
14
8
10
9
4
15
1
8
11
3
5
2
17
12
8
16
7
6
3

Артикул

Название

Примечание

Количество

1

47568580

CONTROL VALVE

ASSY, Incl 2 - 17

1шт.

2

87752051

REPAIR KIT

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2 or in 8

1шт.

5

47569273

SPOOL

1шт.

6

87752049

REPAIR KIT

1шт.

7

85825473

SEAL KIT

1шт.

8

85825477

SEAL KIT

ASSY, Incl 4, 7

1шт.

9

85821236

SEAL KIT

1шт.

10

NSS

NOT SOLD SEPARAT

Pressure Valve, Incl in 11

1шт.

11

85811946

VALVE PRESSURE RELIE

ASSY, Incl 9, 10

1шт.

12

85811934

COVER,Half, Orange

1шт.

13

85821235

SEAL KIT

1шт.

14

85817669

FILTER

1шт.

15

NSS

NOT SOLD SEPARAT

Flow Regulator, Incl in 16

1шт.

16

85820128

REGULATOR

ASSY, Incl 13 - 15

1шт.

17

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

Выбрано товаров: 17
