(35.355.AC[01]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE

Запчасти Case IH FARMLIFT 632 (35.355.AC[01]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

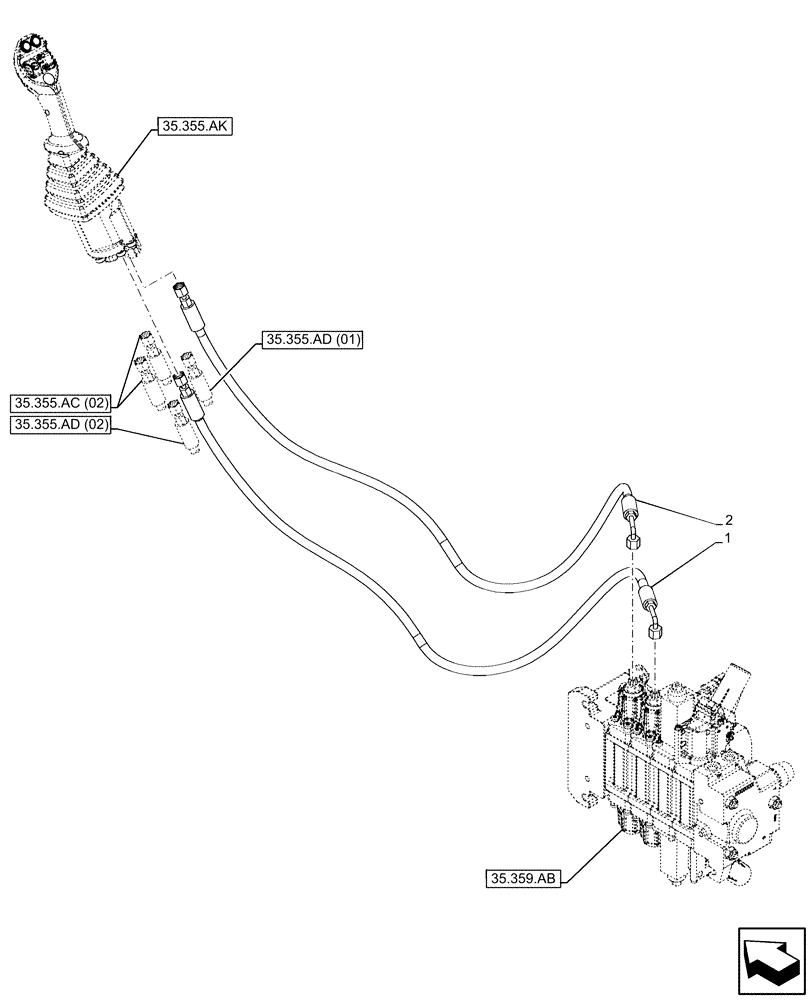

Схема запчастей Case IH FARMLIFT 632 - (35.355.AC[01]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS
1
35.355.ad (02)
35.355.ad (01)
2
35.355.ak
35.355.ac (02)
35.359.ab
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84517247

HYDRAULIC HOSE,6.35mm ID x 1350mm L, SAE 100R16

Joystick port 1 to Directional Valve A2

1шт.

2

84517249

HYDRAULIC HOSE,6.35mm ID x 1350mm L, SAE 100R6

Joystick port 2 to Directional Valve A1

1шт.

Выбрано товаров: 2
