Запчасти Case IH FARMLIFT 632 (35.300.BC) - OIL COOLER LINE (35) - HYDRAULIC SYSTEMS

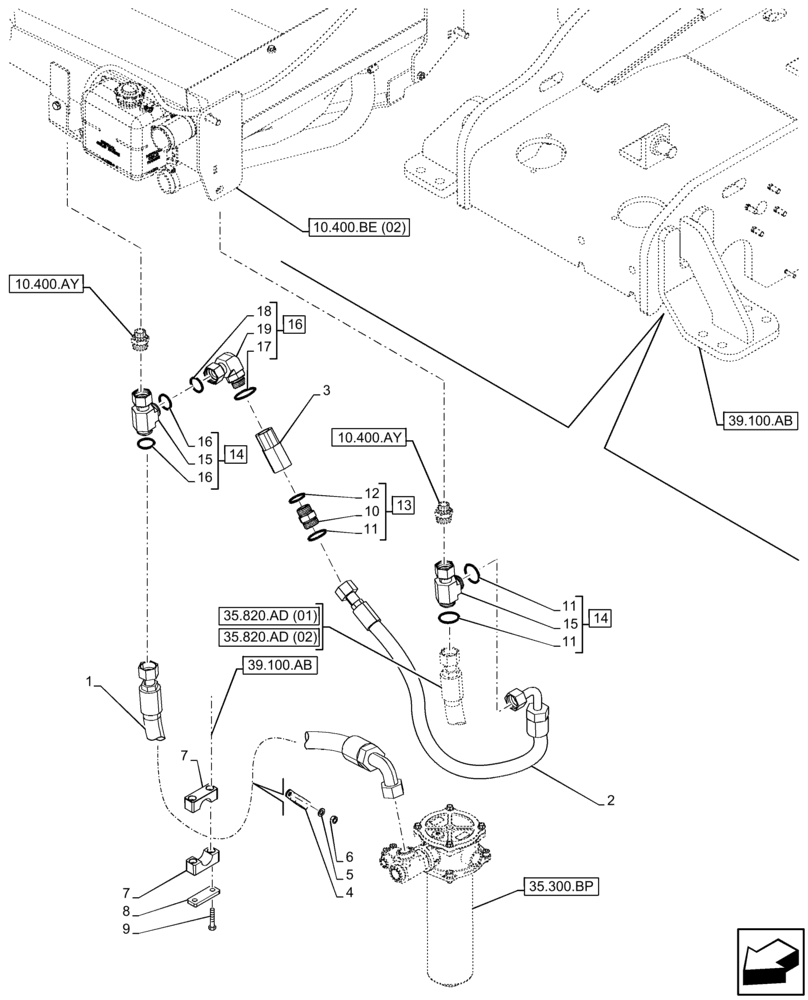

Схема запчастей Case IH FARMLIFT 632 - (35.300.BC) - OIL COOLER LINE (35) - HYDRAULIC SYSTEMS
16
35.820.ad (01)
35.300.bp
39.100.ab
10.400.ay
18
16
11
7
15
16
11
17
5
6
13
2
15
14
19
35.820.ad (02)
14
3
1
11
10.400.ay
7
10.400.be (02)
12
8
10
4
9
39.100.ab

Артикул

Название

Примечание

Количество

1

47609945

HYDRAULIC HOSE

Cooler to Tank

1шт.

2

47525903

HYDRAULIC HOSE,19.05mm ID x 1045mm L, SAE 100R3

Cooler Bypass

1шт.

3

85805824

CHECK VALVE

1шт.

4

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

5

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

6

86500689

NUT,M10 x 1.5, Cl 10

1шт.

7

8468541

CLIP

1шт.

8

2781782

PLATE

1шт.

9

11107631

SCREW,Hex, M10 x 70mm, Cl 10.9

2шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 13

1шт.

11

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

5шт.

12

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

ASSY, Incl 10 - 12

1шт.

14

86641295

TEE,1-7/16"-12 ORFS to Swivel

ASSY, Incl 11, 15

2шт.

15

NSS

NOT SOLD SEPARAT

Tee, Incl in 14

2шт.

16

201-393

ELBOW,90 Degree, 1 7/16"-12 Adj x 1 7/16"-12 Fem Sw, ORFS

ASSY, Incl 17 - 19

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

18

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

19

NSS

NOT SOLD SEPARAT

Elbow, Incl in 17

1шт.

Выбрано товаров: 19
