(35.300.AD[02]) - HYDRAULIC OIL RESERVOIR, RETURN LINE

Запчасти Case IH FARMLIFT 632 (35.300.AD[02]) - HYDRAULIC OIL RESERVOIR, RETURN LINE (35) - HYDRAULIC SYSTEMS

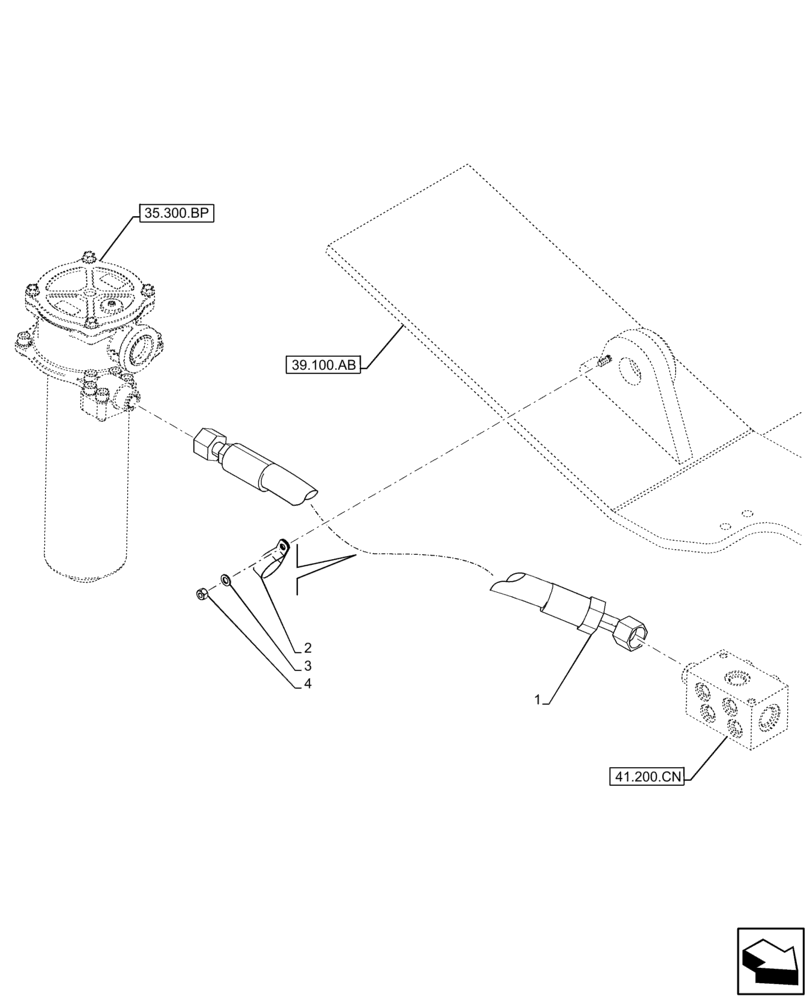

Схема запчастей Case IH FARMLIFT 632 - (35.300.AD[02]) - HYDRAULIC OIL RESERVOIR, RETURN LINE (35) - HYDRAULIC SYSTEMS
1
41.200.cn
4
3
2
39.100.ab
35.300.bp
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84567484

HYDRAULIC HOSE,19.05mm ID x 1405mm L, SAE 100R4

Return Manifold to Tank

1шт.

2

87010657

CLAMP,34.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

4

16102221

NUT,M8, Cl 10

1шт.

Выбрано товаров: 4
