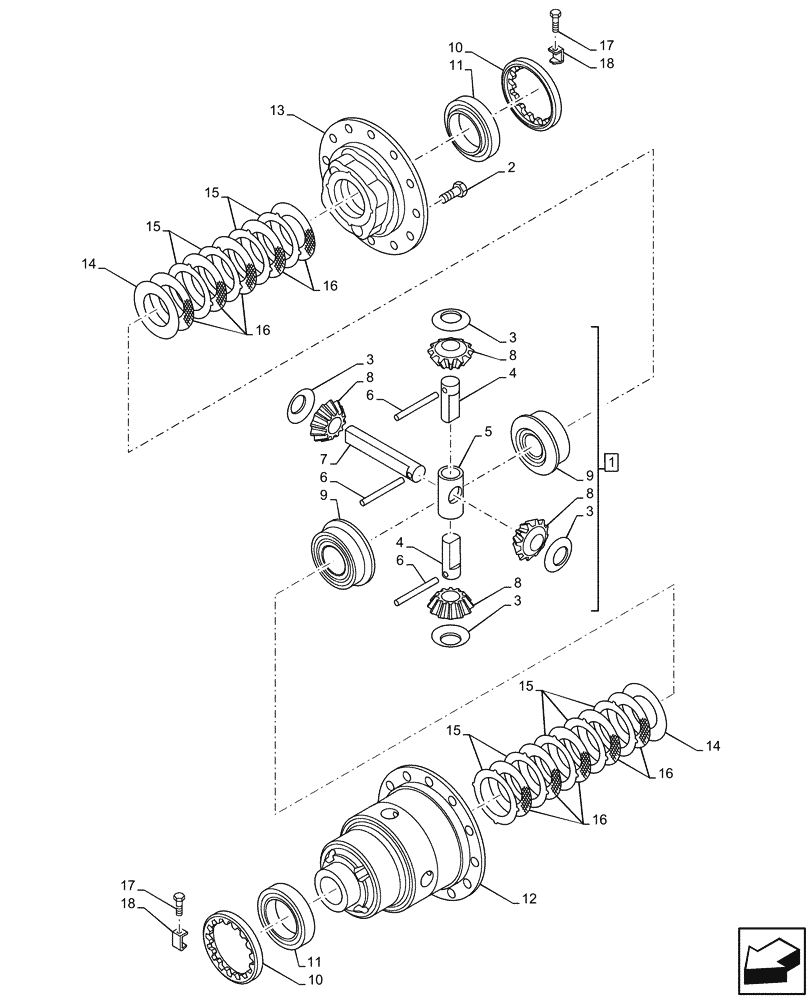

Запчасти Case IH FARMLIFT 632 (27.106.AC[01]) - VAR - 749492 - REAR AXLE, DIFFERENTIAL (LSD) (27) - REAR AXLE SYSTEM

1

47546956

DIFFERENTIAL ASSY

ASSY, Incl 3 - 9

1шт.

2

47551368

SCREW

12шт.

3

87727553

THRUST WASHER,20.27mm ID x 41.75mm OD x 1.5mm Thk

4шт.

4

247562A1

PIN

2шт.

5

300179A1

TOGGLE

1шт.

6

47488491

DOWEL

3шт.

7

87712525

SHAFT

1шт.

8

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

4шт.

9

NSS

NOT SOLD SEPARAT

Seal, Incl in 1

2шт.

10

1966559C1

NUT

2шт.

11

1966894C1

BALL BEARING

2шт.

12

47488511

HOUSING

1шт.

13

47488512

COVER

1шт.

14

1966154C1

PLATE

2шт.

15

1966155C1

PLATE

10шт.

16

1966156C1

WASHER

8шт.

17

112486A1

BOLT,Hex, M6 x 12

2шт.

18

175959A1

BRACKET

2шт.
