(27.100.AK[01]) - VAR - 749492 - REAR AXLE, MOUNTING (LSD)

Запчасти Case IH FARMLIFT 632 (27.100.AK[01]) - VAR - 749492 - REAR AXLE, MOUNTING (LSD) (27) - REAR AXLE SYSTEM

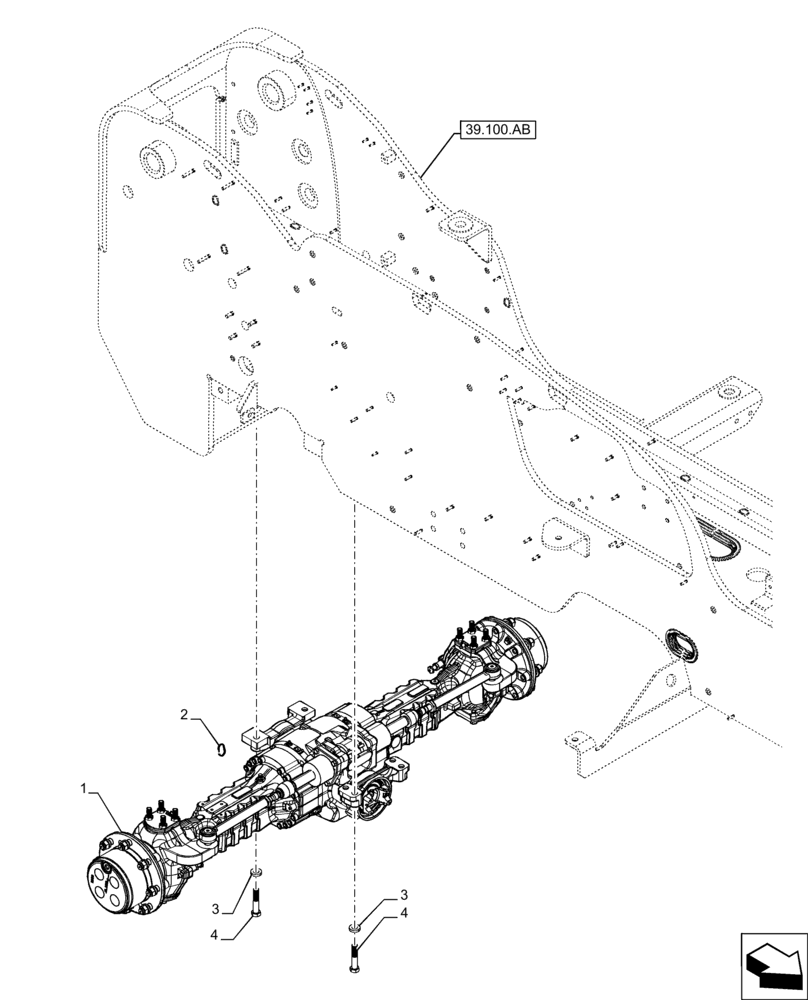

Схема запчастей Case IH FARMLIFT 632 - (27.100.AK[01]) - VAR - 749492 - REAR AXLE, MOUNTING (LSD) (27) - REAR AXLE SYSTEM
2
4
4
1
3
39.100.ab
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84572429

REAR AXLE

, Years: -08-MAY-16

1шт.

1

47969185

REAR AXLE

, Start Year: 09-MAY-16

1шт.

2

435437A1

CABLE TIE,3/16" x 7 1/4"

1шт.

3

79032222

WASHER,21mm ID x 40mm OD x 8mm Thk

6шт.

4

9843612

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

6шт.

Выбрано товаров: 5
