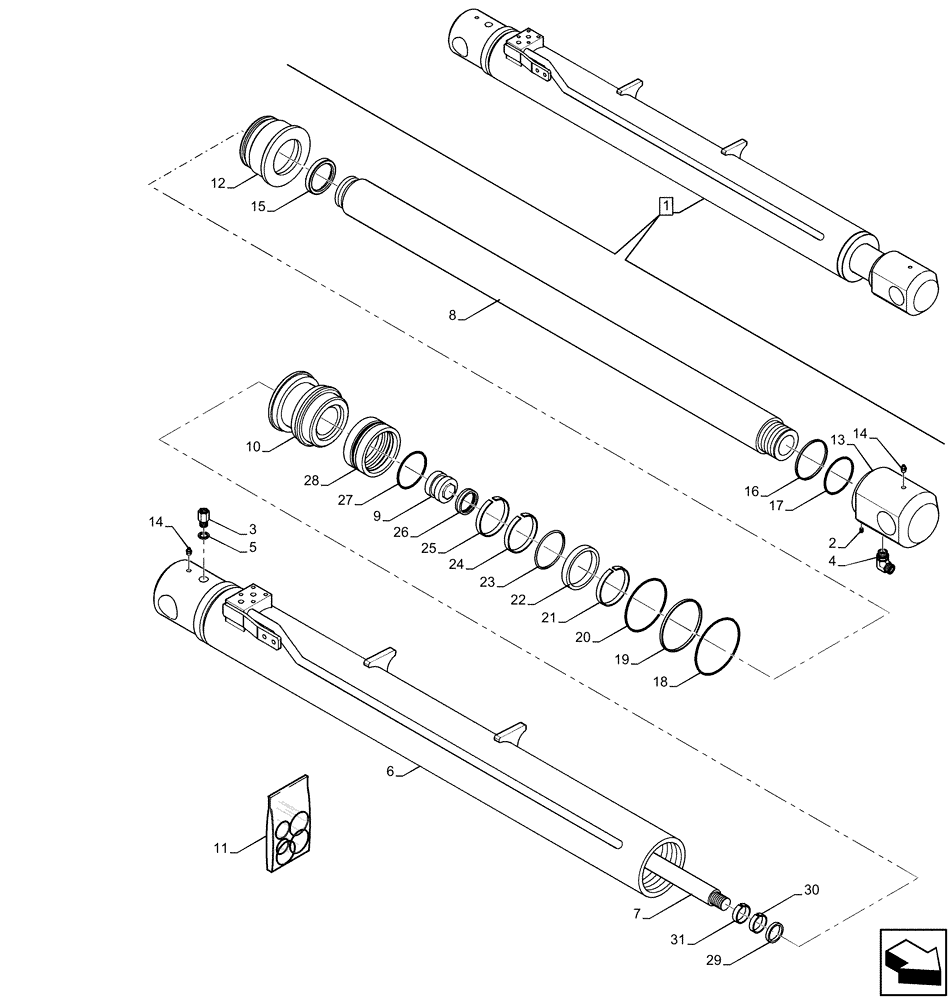

Запчасти Case IH FARMLIFT 525 (35.736.AA[01]) - BOOM, CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47746790

LIFT CYLINDER

ASSY, Incl 2 - 31

1шт.

2

47672992

DOWEL

1шт.

3

84492927

CONNECTING BLOCK

1шт.

4

84525265

MANIFOLD

1шт.

5

84492926

WASHER

1шт.

6

47797026

COVER

1шт.

7

47673336

PISTON ROD

1шт.

8

47673335

PISTON ROD

1шт.

9

47673252

PISTON

1шт.

10

47673181

PISTON

1шт.

11

47673116

GASKET KIT

1шт.

12

47673612

TOP COVER

1шт.

13

47672190

CONNECTING BLOCK

1шт.

14

84510580

LUBE OIL NOZZLE

1шт.

15

NSS

NOT SOLD SEPARAT

Shim, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Seal, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Seal, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Shim, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Shim, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

Seal, Incl in 1

1шт.

24

NSS

NOT SOLD SEPARAT

Shim, Incl in 1

1шт.

25

NSS

NOT SOLD SEPARAT

Shim, Incl in 1

1шт.

26

NSS

NOT SOLD SEPARAT

Shim, Incl in 1

1шт.

27

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

28

NSS

NOT SOLD SEPARAT

Shim, Incl in 1

1шт.

29

NSS

NOT SOLD SEPARAT

Shim, Incl in 1

1шт.

30

NSS

NOT SOLD SEPARAT

Shim, Incl in 1

1шт.

31

NSS

NOT SOLD SEPARAT

Shim, Incl in 1

1шт.
