(35.359.AB[03]) - REMOTE CONTROL VALVE, COMPONENTS

Запчасти Case IH FARMLIFT 525 (35.359.AB[03]) - REMOTE CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

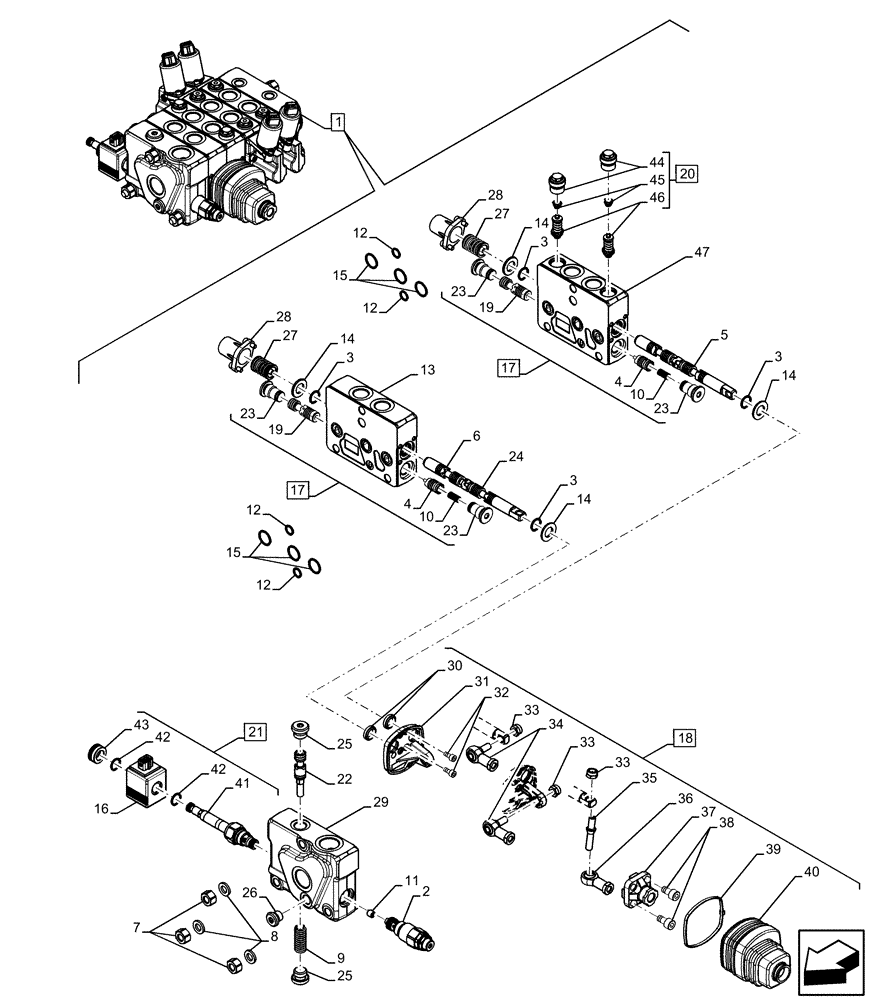

Схема запчастей Case IH FARMLIFT 525 - (35.359.AB[03]) - REMOTE CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
3
14
42
1
3
20
2
39
12
4
33
45
10
42
19
21
23
24
17
40
12
37
23
12
32
14
10
17
34
41
28
4
29
36
33
19
25
35
23
30
9
12
16
44
3
7
33
15
23
31
3
22
11
43
28
27
27
5
26
38
14
15
47
13
46
25
14
8
18
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84534236

DISTRIBUTOR

ASSY, Incl 2 - 47

1шт.

2

47673651

CHECK VALVE

1шт.

3

84512136

SEAL

4шт.

4

84512104

SPOOL

1шт.

5

84512107

SPOOL

1шт.

6

84512106

SPOOL

Spool, without Boom Suspension

1шт.

7

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

3шт.

8

NSS

NOT SOLD SEPARAT

Wascher, Incl in 1

6шт.

9

84512122

SPRING

1шт.

10

84512142

SPRING

1шт.

11

84512127

BREATHER

1шт.

12

84512141

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

Valve Body, Incl in 1

1шт.

14

84512137

O-RING

4шт.

15

84512140

O-RING

1шт.

16

47660012

SOLENOID

1шт.

17

47672340

VALVE SECTION

ASSY, Incl 4, 10, 19, 23

6шт.

18

84512146

COVER

ASSY, 30 - 40

1шт.

19

84512103

SPOOL

1шт.

20

84584546

CHECK VALVE

ASSY, 44 - 46

2шт.

21

47660013

VALVE

ASSY, Incl 41 - 43

1шт.

22

84512115

VALVE PRESSURE RELIE

1шт.

23

47673607

PLUG

1шт.

24

47672659

VALVE SECTION

Spool, with Boom Suspension

1шт.

25

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

26

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

27

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

2шт.

28

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

29

NSS

NOT SOLD SEPARAT

Valve Body, Incl in 1

1шт.

30

NSS

NOT SOLD SEPARAT

Wascher, Incl in 18

1шт.

31

NSS

NOT SOLD SEPARAT

Cap, Incl in 18

1шт.

32

NSS

NOT SOLD SEPARAT

Screew, Incl in 18

4шт.

33

NSS

NOT SOLD SEPARAT

Nut, Incl in 18

5шт.

34

NSS

NOT SOLD SEPARAT

Pin, Incl in 18

2шт.

35

NSS

NOT SOLD SEPARAT

Pin, Incl in 18

1шт.

36

NSS

NOT SOLD SEPARAT

Pin, Incl in 18

1шт.

37

NSS

NOT SOLD SEPARAT

Cap, Incl in 18

1шт.

38

NSS

NOT SOLD SEPARAT

Screew, Incl in 18

1шт.

39

NSS

NOT SOLD SEPARAT

Seal, Incl in 18

1шт.

40

NSS

NOT SOLD SEPARAT

Cap, Incl in 18

1шт.

41

NSS

NOT SOLD SEPARAT

Valve, Incl in 21

1шт.

42

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 21

1шт.

43

NSS

NOT SOLD SEPARAT

Nut, Incl in 21

1шт.

44

NSS

NOT SOLD SEPARAT

Plug, Incl in 20

2шт.

45

NSS

NOT SOLD SEPARAT

Spring, Incl in 20

2шт.

46

NSS

NOT SOLD SEPARAT

Valve, Incl in 20

2шт.

47

NSS

NOT SOLD SEPARAT

Valve Body, Incl in 1

1шт.
