(35.359.AB[02]) - REMOTE CONTROL VALVE, COMPONENTS

Запчасти Case IH FARMLIFT 525 (35.359.AB[02]) - REMOTE CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

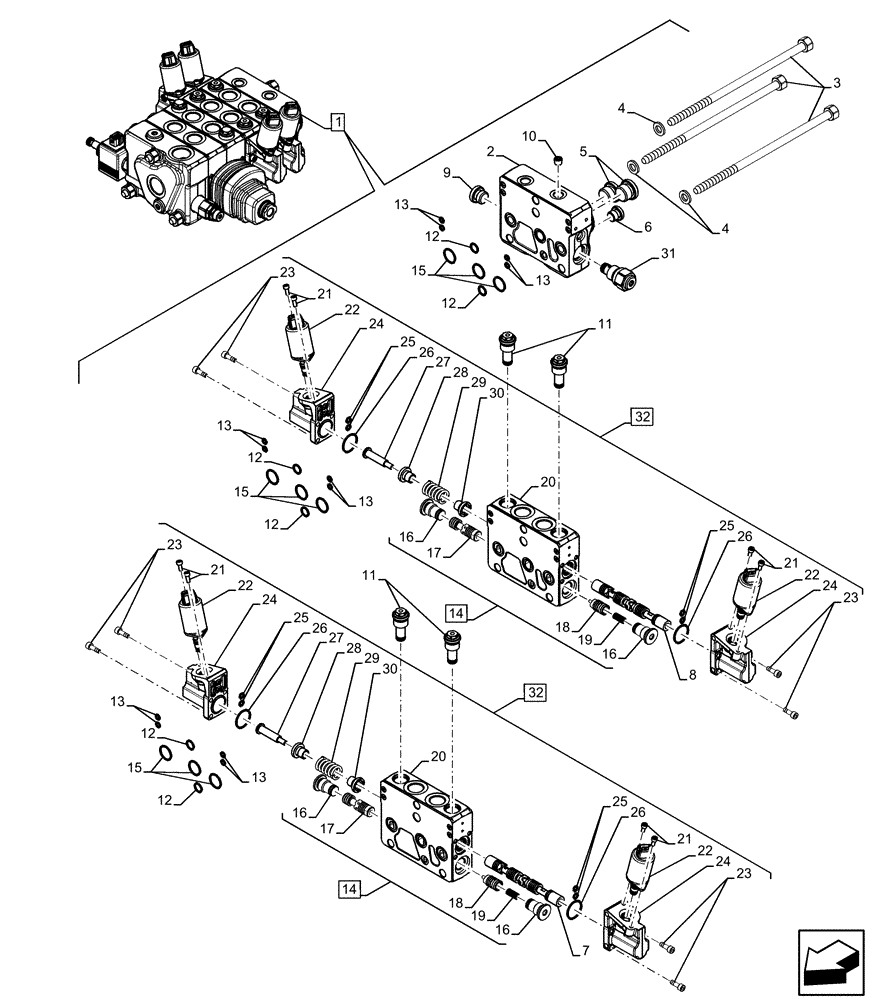

Схема запчастей Case IH FARMLIFT 525 - (35.359.AB[02]) - REMOTE CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
18
16
21
6
24
12
10
11
22
23
18
28
13
13
12
27
30
26
29
12
26
27
13
14
8
21
17
25
2
19
24
7
12
4
11
30
4
25
12
28
1
23
21
19
14
23
13
26
22
20
12
25
21
20
16
26
23
13
9
32
24
22
15
15
25
15
32
24
5
3
13
22
16
16
31
29
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84534236

DISTRIBUTOR

ASSY, Incl 2 - 32

1шт.

2

NSS

NOT SOLD SEPARAT

Distributor Body, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

3шт.

4

NSS

NOT SOLD SEPARAT

Wascher, Incl in 1

3шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

6

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

7

47447817

SPOOL

1шт.

8

84512112

SPOOL

1шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

11

84512148

PLUG

4шт.

12

84512141

O-RING

1шт.

13

84512149

O-RING

1шт.

14

47672340

VALVE SECTION

ASSY, Incl 16 - 19

4шт.

15

84512140

O-RING

1шт.

16

47673607

PLUG

2шт.

17

84512103

SPOOL

2шт.

18

84512104

SPOOL

2шт.

19

84512142

SPRING

2шт.

20

NSS

NOT SOLD SEPARAT

Distributor Body, Incl in 1

2шт.

21

NSS

NOT SOLD SEPARAT

Screw, Incl in 32

8шт.

22

84511857

SOLENOID VALVE

1шт.

23

NSS

NOT SOLD SEPARAT

Screw, Incl in 32

16шт.

24

NSS

NOT SOLD SEPARAT

Cap, Incl in 32

4шт.

25

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 32

8шт.

26

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 32

4шт.

27

NSS

NOT SOLD SEPARAT

Pin, Incl in 32

2шт.

28

NSS

NOT SOLD SEPARAT

Plug, Incl in 32

2шт.

29

NSS

NOT SOLD SEPARAT

Spring, Incl in 32

2шт.

30

NSS

NOT SOLD SEPARAT

Valve, Incl in 32

2шт.

31

84512152

FLOW CONTROL VALVE

1шт.

32

84512145

SOLENOID VALVE

ASSY, Incl 21 - 30

2шт.
