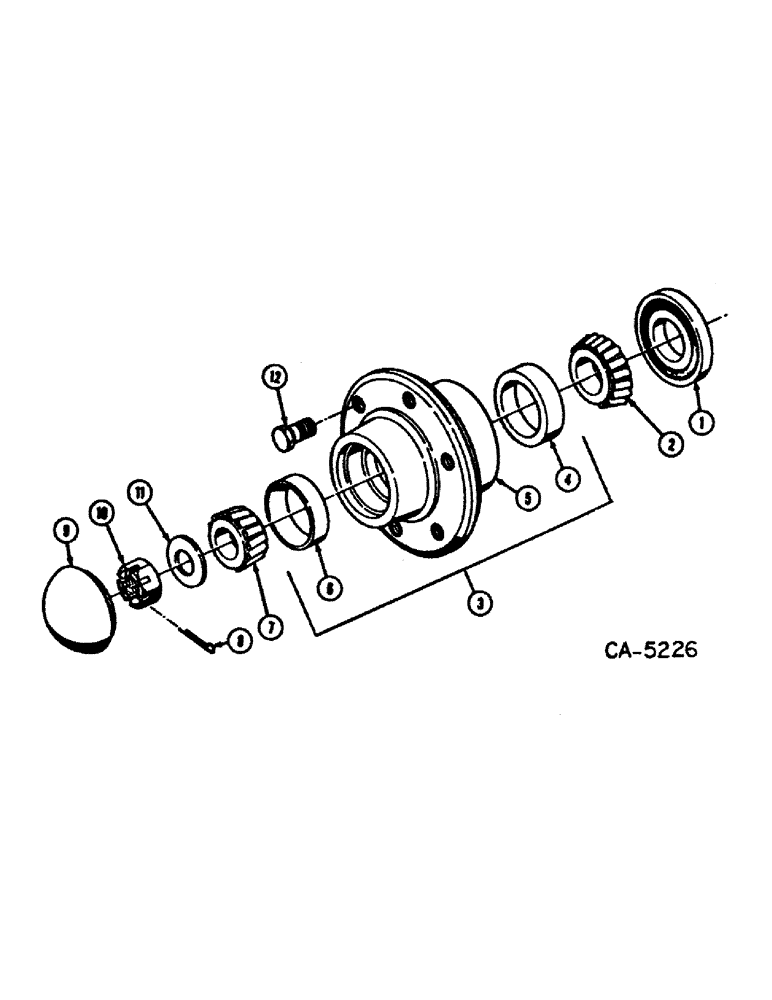

Запчасти Case IH 50 (D-07) - HUB ASSEMBLY, 50 BAIL MOVER (44) - WHEELS

1

614410R91

SEAL

grease

4шт.

2

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING, cone

2шт.

3

64318C91

HUB

ASSY

4шт.

4

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2шт.

5

HUB WHEEL, (not serviced separately), order hub assy

4шт.

6

651817R1

BEARING CUP

BEARING, cup

2шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, cone

2шт.

8

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

4шт.

9

518842R1

CAP

hub

4шт.

10

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt hex.

4шт.

11

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

13/16 x 1-1/2 x 14 ga

4шт.

12

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

24шт.
