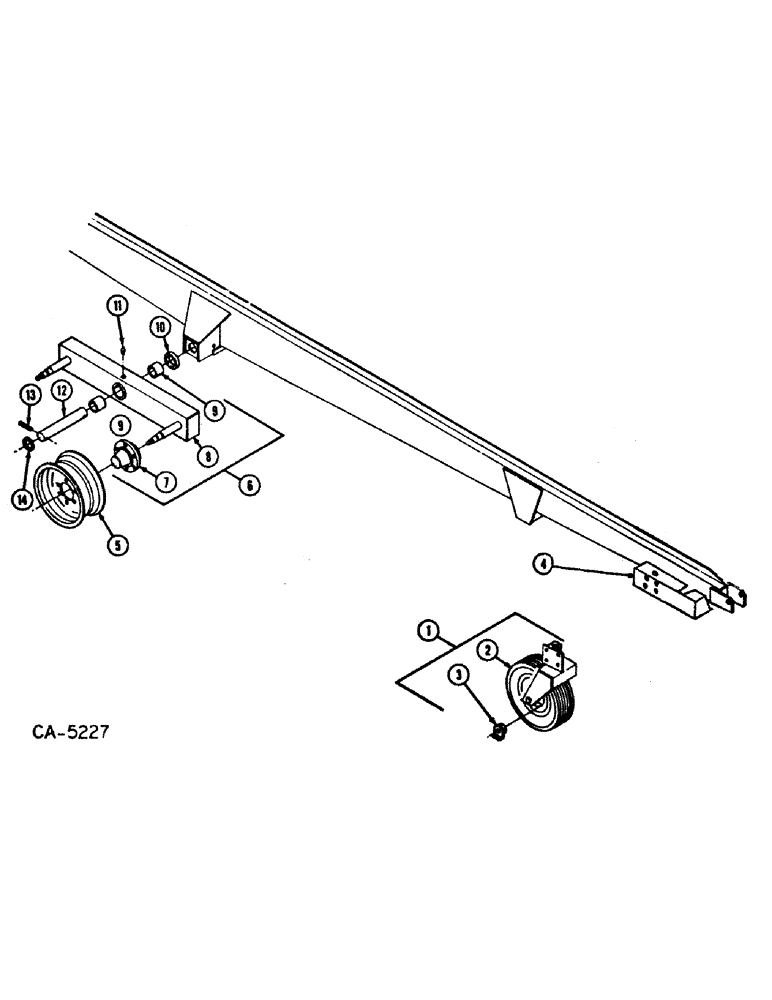

Запчасти Case IH 50 (D-10) - WALKING BEAM ASSEMBLY, 50 BAIL MOVER (25) - FRONT AXLE SYSTEM

1

(Not serviced as an assembly)

1шт.

2

(Not serviced separately)

1шт.

3

(Not serviced separately)

1шт.

4

64104C1

BRACKET, caster

1шт.

5

64458C1

WHEEL, 15 x 8 lb

4шт.

5

64356C1

RIM

WHEEL, 16 x 6 lb

4шт.

6

64146C91

BEAM ASSY, walking LH

1шт.

6

64144C91

BEAM ASSY, walking RH

1шт.

7

64318C91

HUB

ASSY, see hub assy

1шт.

8

64861C1

BEAM, walking LH

1шт.

8

64862C1

BEAM

walking RH

1шт.

9

64145C1

BUSHING

BEARING, sleeve type

2шт.

10

64413C1

SPACER

2шт.

11

(Not serviced separately)

1шт.

12

64414C1

ROD

2шт.

27695R1

PIN,1/2" x 3", Slotted

2шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT, 3/4 x 6 type 5

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

13

(Not serviced separately)

1шт.

14

64147C1

WASHER, special

2шт.
