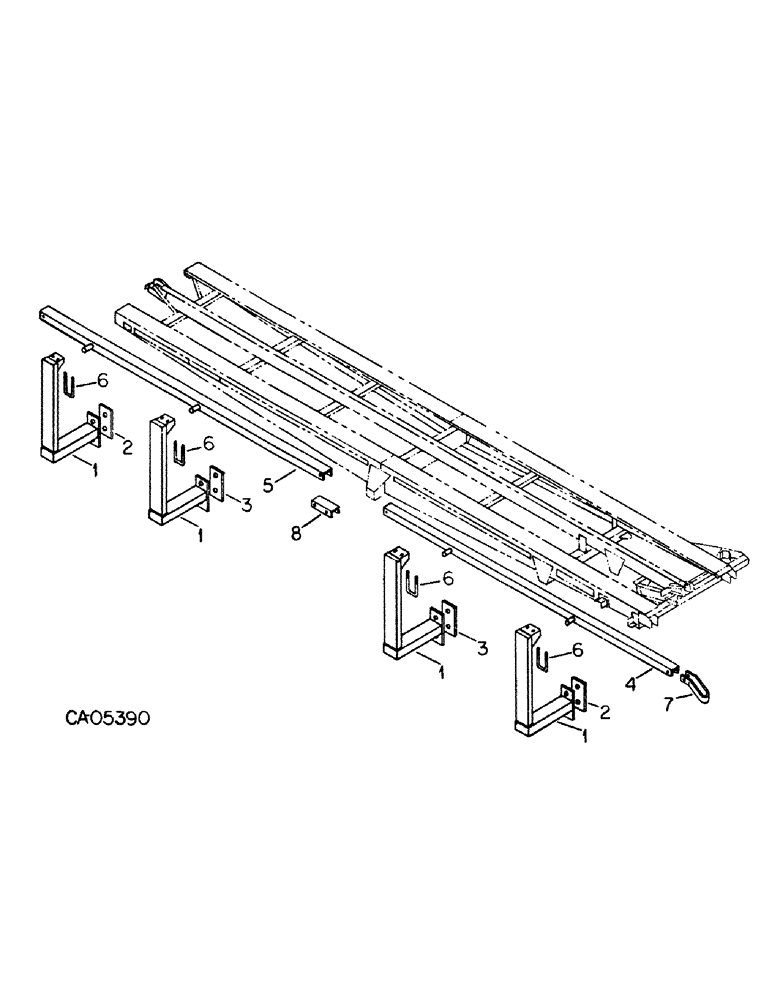

Запчасти Case IH 30 (D-15) - SIDE RAIL ATTACHMENT (88) - ACCESSORIES

1

64877C1

SUPPORT, guide, 4 used for 30 Bale Mover, 8 used for 50 Bale Mover

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5, 8 used for 30 Bale Mover, 16 used for 50 Bale Mover

1шт.

120384

WASHER,1/2"

LOCK, , 8 used for 30 Bale Mover; 16 used for 50 Bale Mover 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 8 used for 30 Bale Mover; 16 used for 50 Bale Mover 1/2"-13, G5

1шт.

2

64878C1

BAR, reinforcement front, plate

1шт.

3

64879C1

BAR, reinforcement rear, plate

1шт.

4

64880C1

RAIL ASSY, front

2шт.

5

64881C1

RAIL ASSY, rear, 50 Bale Mover

2шт.

6

64882C1

BOLT, U, 4 used for 30 Bale Mover, 8 used for 50 Bale Mover

1шт.

7

64883C1

SUPPORT, rail, cap

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

8

64884C1

CONNECTOR, rail, 50 Bale Mover

2шт.
