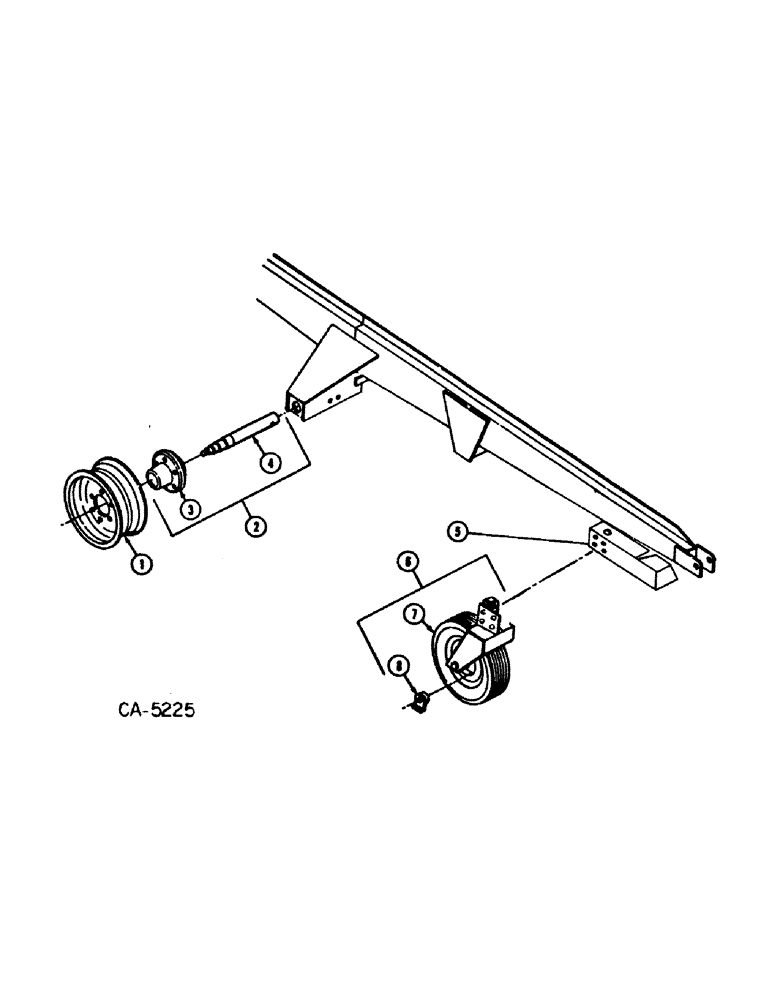

Запчасти Case IH 30 (D-09) - TRANSPORT AND CASTER WHEELS, 30 BAIL MOVER (44) - WHEELS

1

64458C1

WHEEL, 15 x 8 lb

2шт.

1

64356C1

RIM

WHEEL, 16 x 6 lb

2шт.

2

(Not serviced as an assembly)

1шт.

3

64410C91

HUB

ASSY, see hub assy

1шт.

4

64409C1

SPINDLE

2шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT, 3/4 x 6 type 5

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

5

64104C1

BRACKET, caster

1шт.

6

(Not serviced as an assembly)

1шт.

7

(Not serviced separately)

1шт.

8

(Not serviced separately)

1шт.
