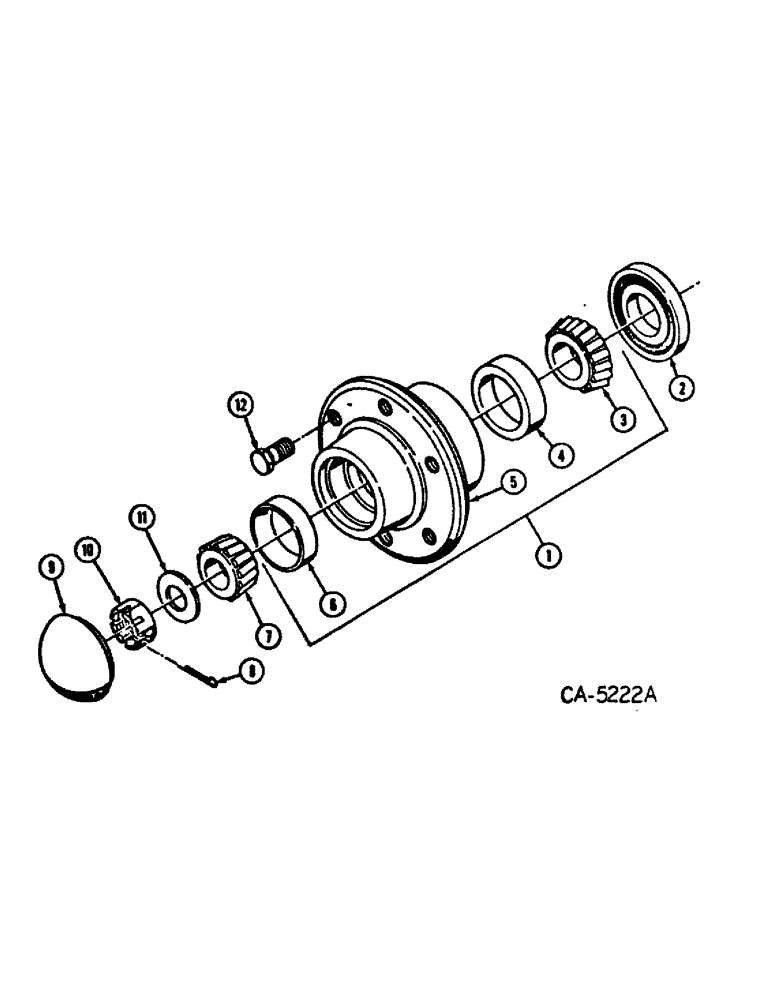

Запчасти Case IH 30 (D-06) - HUB ASSEMBLY, 30 BAIL MOVER (44) - WHEELS

1

64410C91

HUB

ASSY

2шт.

2

64460C1

SEAL

grease

1шт.

3

300429R91

BEARING, cone

1шт.

4

ST987

BEARING CUP

BEARING, cup

1шт.

5

HUB, wheel, (not serviced separately) order hub assy

2шт.

6

ST2167

BEARING

cup

1шт.

7

560963R91

BEARING, cone

1шт.

8

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

9

491716R1

CAP

hub

2шт.

10

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 znd slt-hex.

2шт.

11

619373R1

WASHER

.938 x 2.0 x 165 ga

2шт.

12

56047C1

BOLT,9/16" - 18 x 1 11/16", Class 3

wheel

12шт.
