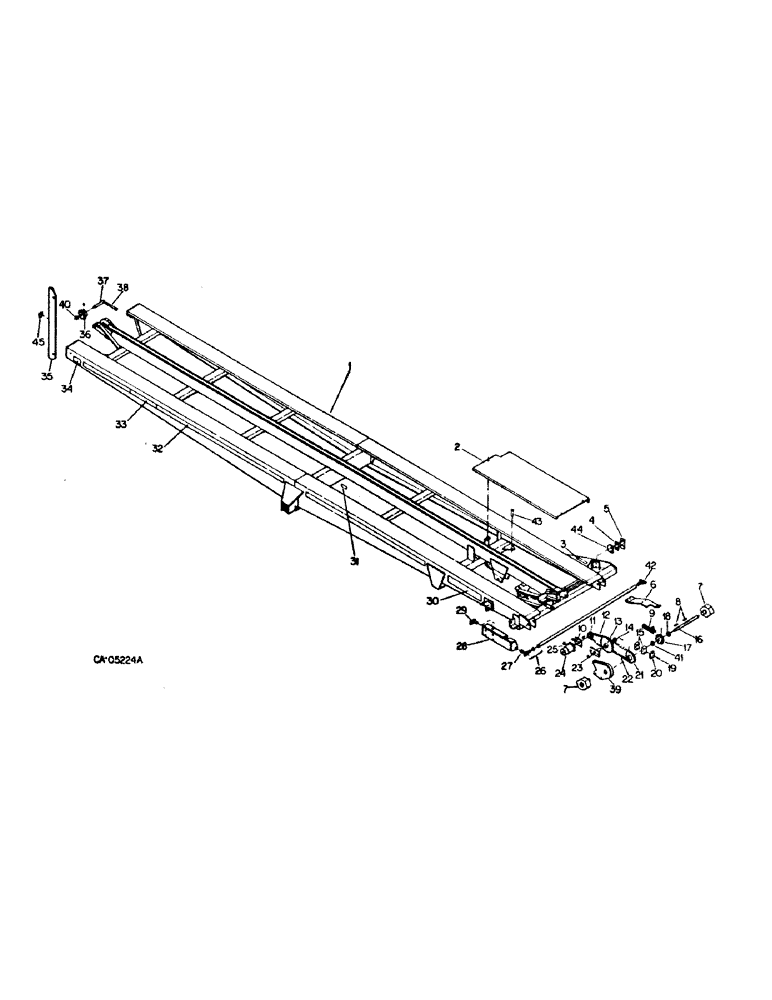

Запчасти Case IH 30 (D-02) - FRAME (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

FRAME ASSY, (not serviced separately)

1шт.

2

64101C1

SHIELD, drive

1шт.

3

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, no step, (not serviced separately), order package 64459C91

1шт.

4

64102C1

BAR, shim

1шт.

5

64103C1

BAR, stop

1шт.

6

64109C1

SHIELD, drive

1шт.

7

64110C1

HUB, lifter

2шт.

8

Q55

KEY,3/8" Sq x 2", Par

3/8 x 3/8 x 2 parallel

2шт.

9

CHAIN, see pintle chain

1шт.

10

64210C1

BAR, adjusting

1шт.

11

64463C1

SPROCKET, 12T

1шт.

12

CHAIN, No. 50 roller, use 45 links from a 10 ft. roll marked, 1791D, plus 1 connecting link, 1310D, & 1 offset link, 1315D

1шт.

1310D

LINK

#50 single pitch connecting

1шт.

1315D

LINK

#50 single pitch offset

1шт.

13

64211C91

SPROCKET ASSY.

SPROCKET ASSY

1шт.

64465C1

BUSHING

bronze

2шт.

14

591715R1

WASHER

1-1/32 x 1-1/2 x .054 ga

2шт.

15

64466C1

BLOCK

BEARING, wood

4шт.

16

64212C1

SHAFT, front

1шт.

17

64213C1

SPROCKET ASSY.

SPROCKET

1шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 C/PT znp hdl/s set

1шт.

18

608085R1

WASHER

BUSING, 1-13/32 x 2.0 x .054

1шт.

19

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 str drive type lub

2шт.

20

64467C1

SUPPORT, bearing

4шт.

21

64469C1

SPROCKET ASSY.

SPROCKET, 25T

1шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 C/PT znp hdl/s set

1шт.

22

CHAIN, No. 60 roller, use 59 links from a 10 ft. roll marked, 611362R91, plus 1 connecting link, 574532R91

1шт.

574532R91

CLIP, SPRING

LINK, #60 single pitch connecting

1шт.

23

64216C1

SHAFT

jack

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

24

64474C1

MOTOR

orbit

1шт.

25

366064R1

CONNECTOR, ELEC

UNION, adapter

3шт.

26

64106C1

PIPE

actuator

1шт.

772774C91

END

rod

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-NF jam type 5

1шт.

27

64847C1

SPACER, 1/4 in.

1шт.

28

64104C1

BRACKET, caster

1шт.

29

64105C1

PIN

2шт.

30

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, (not serviced separately), order package 64459C91

1шт.

31

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, (not serviced separately), order package 64459C91

1шт.

32

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, (not serviced separately), order package 64459C91

1шт.

33

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, (not serviced separately), order package 64459C91

1шт.

34

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, (not serviced separately), order package 64459C91

1шт.

35

64107C1

TINE

2шт.

36

64457C1

SPROCKET ASSY.

SPROCKET

1шт.

64685C1

BRACKET

BUSHING, plain bearing

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

37

64217C1

PIN, shaft

1шт.

38

64218C1

BOLT, adjusting

2шт.

39

64219C1

SHIELD

1шт.

40

580342R1

SPACER,1" Pipe x 1/2"

1/2 in.

1шт.

41

64220C1

SPACER, tube

1шт.

42

64108C1

BOLT

T

1шт.

43

22457R1

HEADED PIN,1" x 4"

PIN, 1 x 4 znd headed

1шт.

44

64848C1

BAR, wear

1шт.

45

398976R1

BRACKET

SOCKET, SMV emblem

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.
