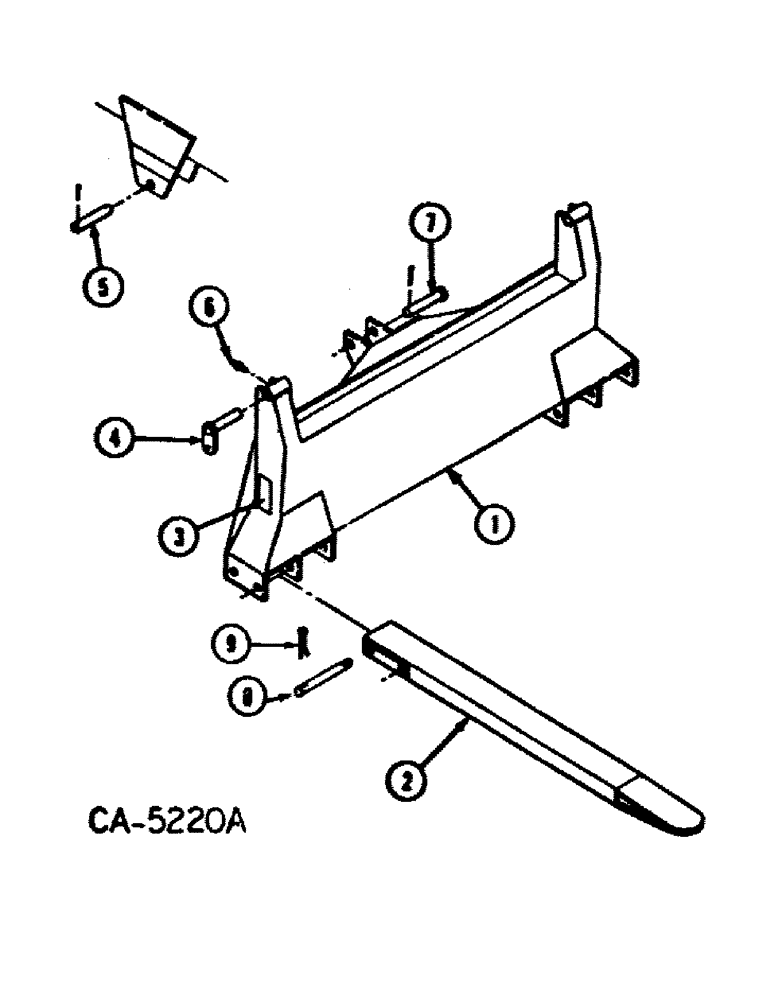

Запчасти Case IH 30 (D-05) - FRONT FORK (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

64221C1

FORK W/PRODUCT GRAPHIC

1шт.

63897C1

PRODUCT GRAPHIC, danger

1шт.

2

64222C1

FINGER, tine

2шт.

3

63897C1

PRODUCT GRAPHIC, danger

1шт.

4

64223C1

PIN, lock

2шт.

5

64468C1

PIN

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

7

22457R1

HEADED PIN,1" x 4"

PIN, 1 x 4 znd headed

1шт.

8

64225C1

PIN, 5/8 x 6-7/8

4шт.

22198R1

WASHER

.656 x 1.125 x .042

8шт.

9

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

8шт.
