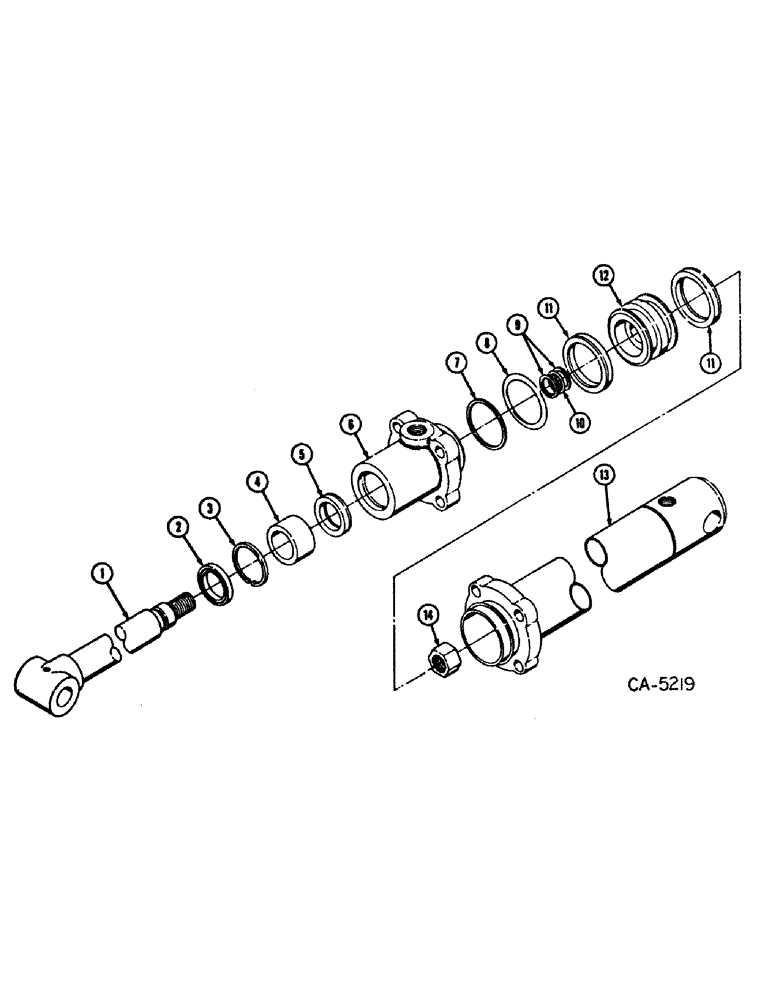

Запчасти Case IH 30 (D-13) - HYDRAULIC CYLINDER, 3 X 22 IN. DOUBLE ACTING (35) - HYDRAULIC SYSTEMS

64423C91

CYLINDER ASSEMBLY, 3 x 22 in. hyd fork

1шт.

1

64424C1

ROD, piston

1шт.

2

64425C1

WIPER SEAL

WIPER

1шт.

3

64426C1

RING

retaining

1шт.

4

64427C1

BUSHING

1шт.

5

64428C1

PACKING

1шт.

6

64429C1

BUSHING

1шт.

7

64430C1

RING

back-up

1шт.

8

3044436R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

2-5/8 x 3 x 3/16

1шт.

9

64432C1

RING

back-up

2шт.

10

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

7/8 x 1-1/8 x 1/8

1шт.

11

64434C1

HOUSING

PACKING

1шт.

12

64435C1

PISTON

1шт.

13

64436C1

BODY

1шт.

14

20290R1

LOCK NUT,1"-14, G5

NUT, 1-14 NF znd hex lock prevailing torque

1шт.
