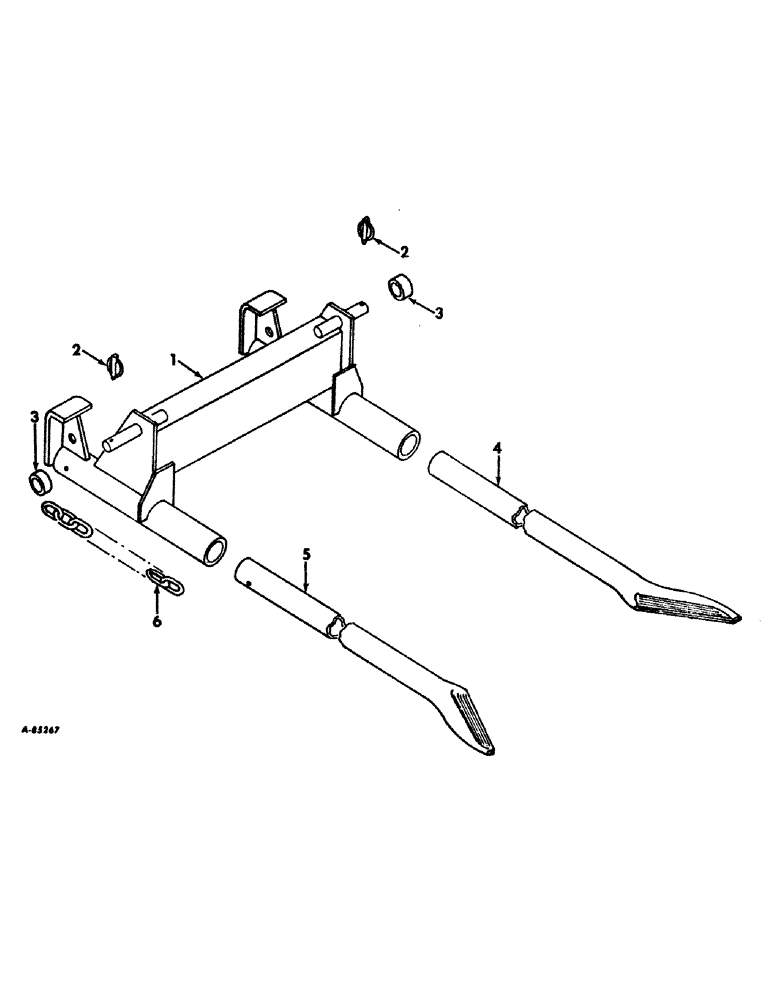

Запчасти Case IH 11 (C-2) - NO. 11 BALE CARRIER ATTACHMENT, FOR TRACTORS WITH 3 POINT HITCH (88) - ACCESSORIES

1

208347C3

VALVE BLOCK

LIFT ASSY, bale

1шт.

2

D33805

PIN

linch

2шт.

3

608028R1

SPACER, lift pin

2шт.

4

208354C3

ARM

bale lift RH

1шт.

189316

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5

SCREW, 1/2-13 x 4-1/4 znd hex-hd cap

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cad hex. lock

1шт.

5

210447C2

ARM

bale lift LH

1шт.

189316

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5

SCREW, 1/2-13 x 4-1/4 znd hex-hd cap

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cad hex. lock

1шт.

6

208346C1

CHAIN (AG)

CHAIN, lift link

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 znd hex-hd cap

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 znd hex. lock

2шт.

607895R1

WASHER

.531 x 1.000 x .105 znd

4шт.

212596C1

PRODUCT GRAPHIC

caution

1шт.
