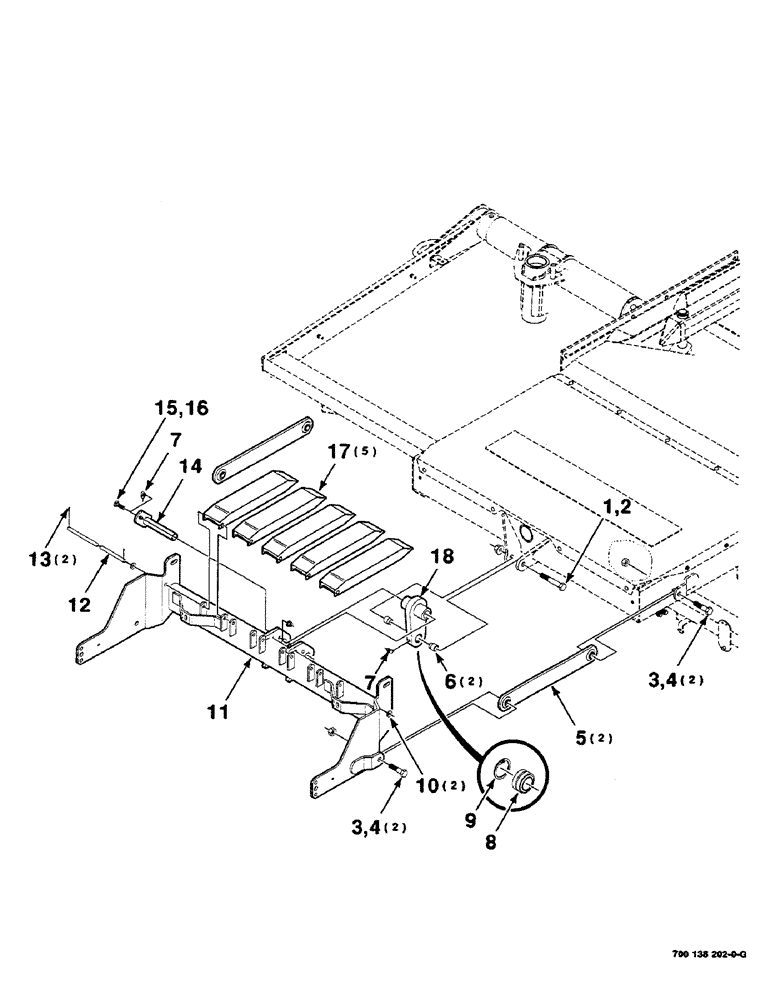

Запчасти Case IH 8581 (10-10) - HITCH AND BALE SUPPORT ASSEMBLIES, 8582 Accumulator

1

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

3/4-10 X 4-1/2 C

1шт.

2

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

1шт.

3

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

.75 X 3 UNC GR5 YZD

4шт.

4

230-41112

LOCK NUT,3/4"-10, GA

3/4-10 HTLN GR/B

4шт.

5

6596605

LINK

WA

2шт.

6

700129849

BUSHING

2шт.

7

700706682

FRONT AXLE

ELBOW - male

2шт.

8

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING

1шт.

9

700715071

OIL SEAL

RING - retaining

1шт.

10

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

11

700138055

TRAILER HITCH

HITCH WA - accumulator

1шт.

12

700138205

PIN

- plated

1шт.

13

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

2шт.

14

700129472

PIN

WA - hitch

1шт.

15

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 X 1-3/4 RHSNB

1шт.

16

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

17

6810329

SUPPORT

WA - bale

5шт.

18

700129844

ARM

WA - hitch (Includes Items 8 & 9)

1шт.
