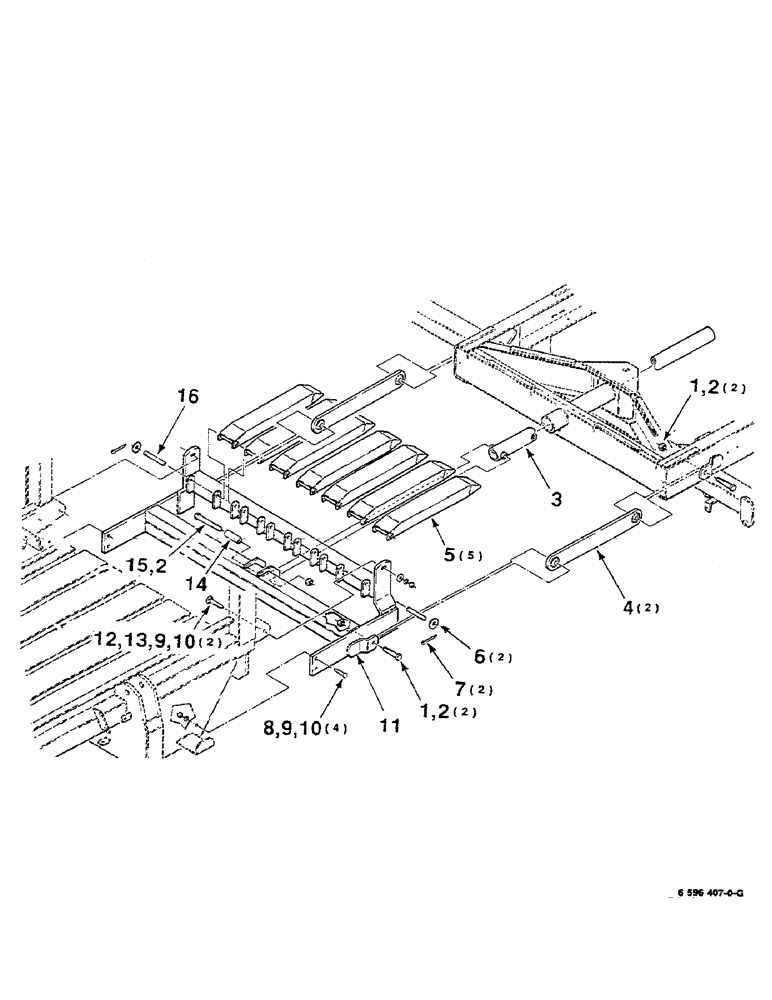

Запчасти Case IH 8581 (10-08) - HITCH AND BALE SUPPORT ASSEMBLIES Accumulator

1

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

.75 X 3 UNC GR5 YZD

4шт.

2

230-41112

LOCK NUT,3/4"-10, GA

3/4-10 HTLN GR/B

5шт.

3

6810733

TUBE

WA

1шт.

4

6596605

LINK

WA

2шт.

5

6810329

SUPPORT

WA

5шт.

6

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

7

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

2шт.

8

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

5/8-11 X 1-3/4 C

4шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

10

425-1010

NUT,5/8"-11, G5

6шт.

11

6810683

HITCH ASSY

HITCH WA

1шт.

12

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 RHSNB

2шт.

13

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

14

6810725

SPACER

1шт.

15

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

16

6596506

PIN

1шт.
