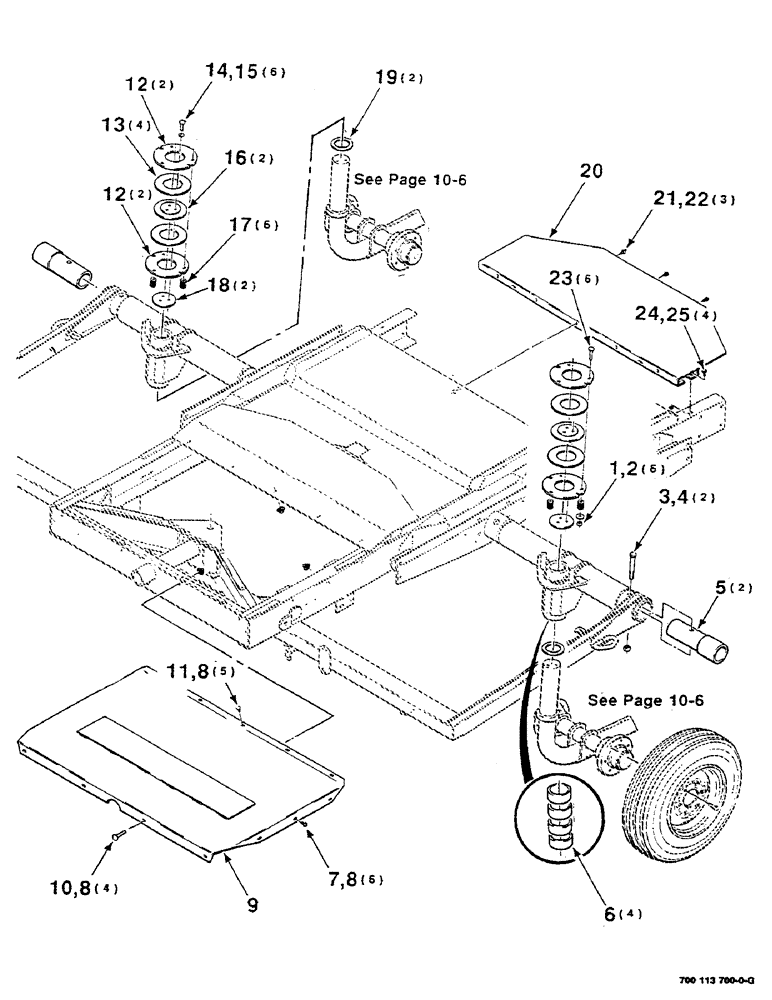

Запчасти Case IH 8581 (10-02) - MAINFRAME AND CASTER ASSEMBLY Accumulator

1

231-1406

LOCK NUT,3/8"-16, GB

3/8-16 LHSN

6шт.

2

495-21044

WASHER,3/8"

6шт.

3

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

.75 X 5.5 UNC GR5 YZD

2шт.

4

230-41112

LOCK NUT,3/4"-10, GA

3/4-10 HTLN GR/B

2шт.

5

700113861

TUBE,95.25 mm OD, 300 mm Length

- extension

2шт.

6

6597413

BRONZE BUSHING

BEARING - bronze

4шт.

7

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

8

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

15шт.

9

700113782

FLOOR

- front (8581)

1шт.

700138207

FLOOR

- front (8582)

1шт.

10

433-548

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3", Gr 5

5/16-18 X 3 RHSNB

4шт.

11

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5шт.

12

700113778

CLUTCH PLATE

PLATE - pressure

4шт.

13

700711025

CLUTCH PLATE,92mm ID x 161.92mm OD x 3.18mm Thk

DISC - friction

4шт.

14

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

16

700113781

CLUTCH PLATE

DISC

2шт.

17

58644

SPRING

- compression

6шт.

18

700113780

CAP WASHER

CAP

2шт.

19

6595052

WASHER,76.99mm ID x 101.6mm OD x 1.8mm Thk

2шт.

20

6596514

PANEL

WA

1шт.

21

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

3шт.

22

231-5146

FLANGE NUT,3/8"-16

3шт.

23

433-644

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

3/8-16 X 2-3/4 RHSNB

6шт.

24

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

1/2-13 X 1 HFSS

4шт.

25

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.
