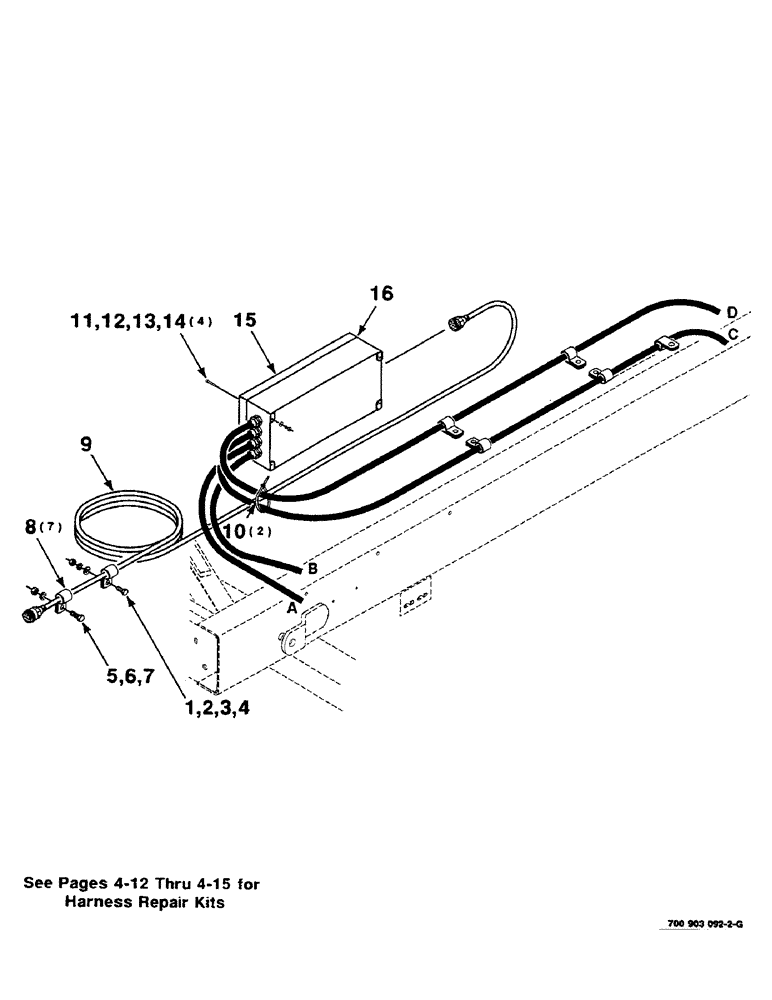

Запчасти Case IH 8581 (10-40) - BALE WEIGHT KIT, (CONT) Accumulator

1

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

2

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

425-105

NUT,5/16"-18, G5

1шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

425-106

NUT,3/8"-16, Cl 5

1шт.

8

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- line

7шт.

9

700706456

WIRE HARNESS

HARNESS - cable, scale

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

11

25728R1

HEX SOC SCREW,#8 - 32 x 1"

#8-32 X 1 HSHCS SPL

4шт.

12

495-21019

WASHER,#8

4шт.

13

492-11008

LOCK WASHER,#8

Washer, Lock, #8

4шт.

14

225-14108

NUT,#8-32

H GR2 #8-32

4шт.

15

700712848

SCALE

BOX - scale (Includes Item 16)

1шт.

16

700712896

SEAL

1шт.
