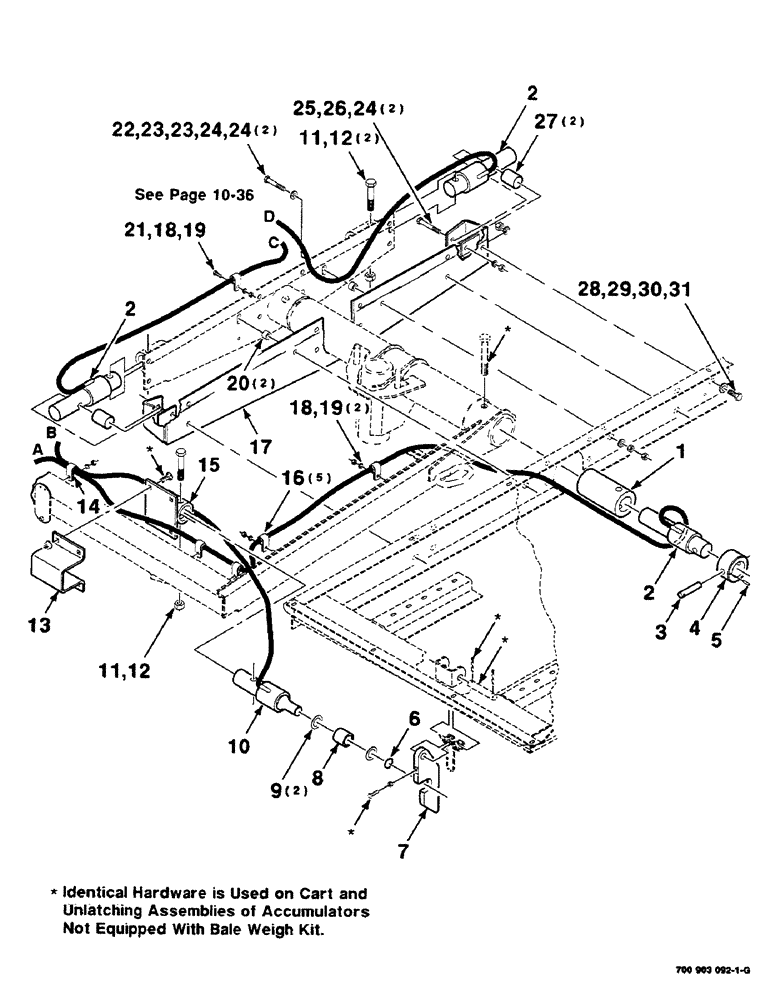

Запчасти Case IH 8581 (10-38) - BALE WEIGHT KIT, HK40635 BALE WEIGHT KIT COMPLETE, INCLUDES PAGES 10-34 THRU 10-36 Accumulator

HK40635

KIT

BALE WEIGHT KIT COMPLETE

1шт.

1

700113882

SPACER

- mounting

1шт.

2

700706232

ACTUATOR

- weight, pivot

3шт.

3

700113880

PIN

1шт.

4

700113875

BUSHING,57.95 mm ID x 56 mm

BEARING - pivot, outer

1шт.

5

38-11632

LOCK PIN,1/4" x 2", Slotted

PIN, LOCK, 1/4" x 2", Slotted

1шт.

6

103-11125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

7

700113883

LATCH

- weight kit

1шт.

8

700113877

BEARING ASSY,32.05 mm ID

BEARING - latch

1шт.

9

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

2шт.

10

700706233

ACTUATOR

- weight, latch

1шт.

11

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

3/4-10 X 4 C

3шт.

12

230-41112

LOCK NUT,3/4"-10, GA

3/4-10 HTLN GR/B

3шт.

13

700113764

SUPPORT

CLAMP

1шт.

14

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

15

700113881

SUPPORT

MOUNTING WA - left

1шт.

16

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

5шт.

17

700113868

COVER PLATE

MOUNT WA - weight kit

1шт.

18

492-11038

LOCK WASHER,3/8"

3шт.

19

425-106

NUT,3/8"-16, Cl 5

3шт.

20

700100054

SPACER

- roller

2шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

22

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

2шт.

23

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

25

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1/2-13 X 3-1/2 C

2шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

27

700113876

SPACER

2шт.

28

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

29

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

30

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

31

425-1010

NUT,5/8"-11, G5

1шт.
