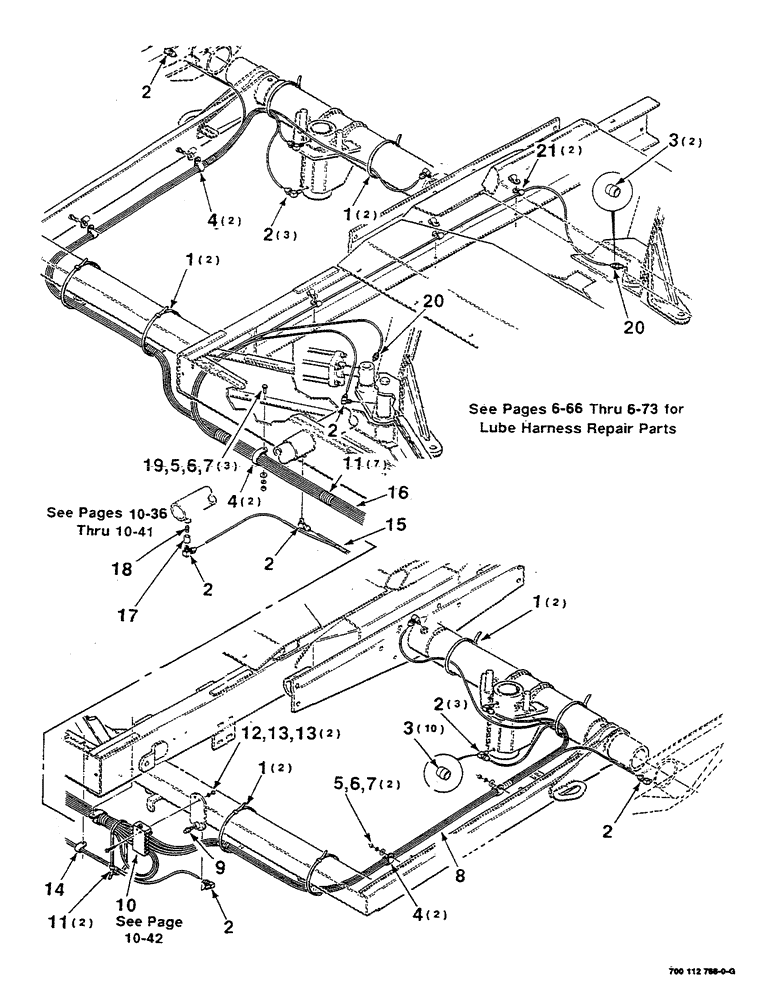

Запчасти Case IH 8581 (10-32) - LUBE ASSEMBLY, CENTRALIZED FOR ACCUMULATOR Accumulator

1

7721798

CABLE

TIE - hose

8шт.

2

700706682

FRONT AXLE

ELBOW - male (Includes Item 3)

12шт.

3

30774V

FERRULE

SLEEVE - ball

12шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Hose 3/4", Insul, 3/8" Bolt

6шт.

5

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

5шт.

6

492-11038

LOCK WASHER,3/8"

5шт.

7

425-106

NUT,3/8"-16, Cl 5

5шт.

8

700113885

FLEXIBLE HOSE

HARNESS - lube, left

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-28 ZERK

1шт.

10

700706680

MANIFOLD

VALVE - lube

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

9шт.

12

7701444

SCREW

#10-32 X 1-3/4 HSHCS SPL

2шт.

13

225-14210

NUT,#10-32

4шт.

14

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

15

700113888

FLEXIBLE HOSE

HARNESS - lube, front (8581)

1шт.

700149699

HARNESS

- lube, front (8582)

1шт.

16

700113887

FLEXIBLE HOSE

HARNESS - lube, right

1шт.

17

221-326

COUPLING,Pipe, 1/8" NPT

1шт.

18

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

20

219-300

ROD, CONNECTING

CONNECTOR - male

2шт.

21

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

2шт.
