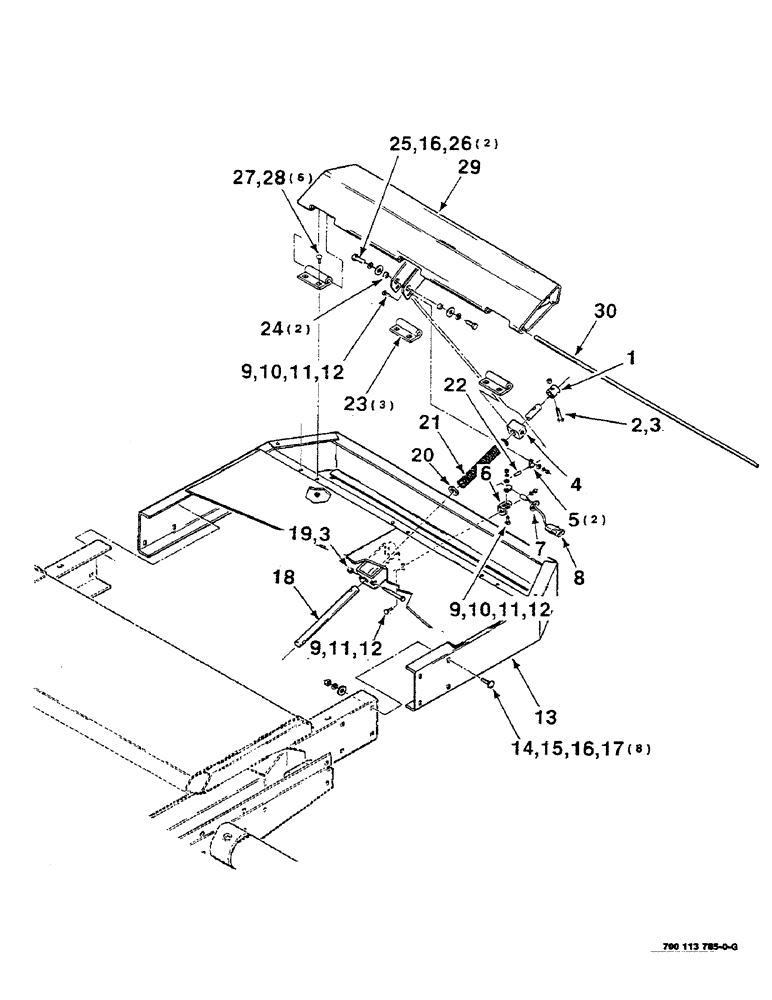

Запчасти Case IH 8581 (10-30) - FRAME AND PANEL ASSEMBLY, REAR Accumulator

1

700113799

SPACER

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

2шт.

4

700113798

TRUNNION

TRUNION

1шт.

5

751321

CLAMP

1/4 ID CLAMP

2шт.

6

700113864

ANGLE

- switch, mount

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

700113863

SENSOR

SWITCH ASSEMBLY

1шт.

9

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

3шт.

10

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

2шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

12

425-104

NUT,1/4"-20, Cl 5

3шт.

13

700113791

FRAME

WA - rear

1шт.

14

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

8шт.

15

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

8шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

10шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

18

700113800

ROD

- spring

1шт.

19

7772767

SCREW,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 C

1шт.

20

826271

WASHER

1шт.

21

858571

ADJUSTABLE CLEVIS

SPRING - compression

1шт.

22

700706340

MAGNET

1шт.

23

6595722

HINGE

3шт.

24

A28893

BUSHING

SPACER

2шт.

25

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

26

495-21056

WASHER,1/2"

1/2 WIDE PLAIN WASHER

2шт.

27

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

6шт.

28

231-5146

FLANGE NUT,3/8"-16

6шт.

29

700113786

PANEL

WA - trigger

1шт.

30

700113801

PIN

- hinge

1шт.
