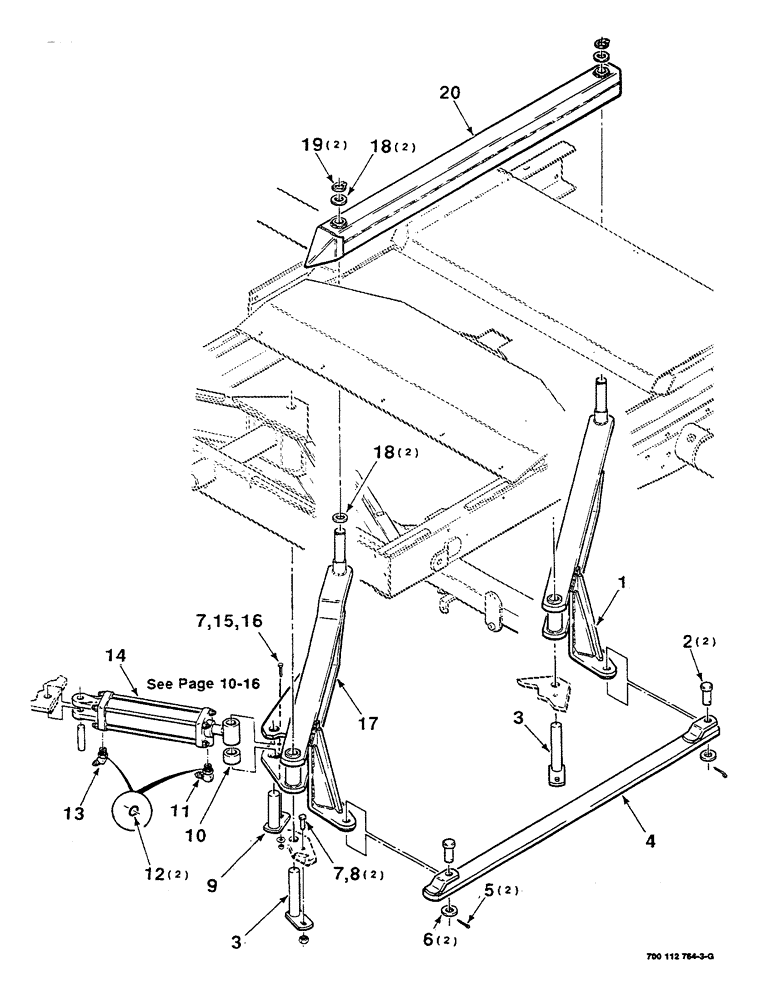

Запчасти Case IH 8581 (10-24) - BALE SHIFT BAR AND LINKAGE ASSEMBLY Accumulator

1

700113755

ARM

WA - back

1шт.

2

141-10

CLEVIS PIN,1" x 2.406"

1 X 2-1/2 CLEVIS PIN

2шт.

3

700113770

PIN

WA - pivot

2шт.

4

700113762

LINK

1шт.

5

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

2шт.

6

705574

WASHER,1 1/8" x 2" x .156", HDN

2шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

8

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

9

700113854

PIN

WA - cylinder

1шт.

10

700113853

SPACER

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

(Includes Item 12) 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

13

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- adjustable (Incl. Item 12)

1шт.

14

7896079

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 254mm Stroke

CYLINDER ASSEMBLY - hydraulic

1шт.

15

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

1шт.

16

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

1шт.

17

700113754

ARM

WA - front

1шт.

18

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

4шт.

19

103-11125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

20

6594931

FAN

PUSHER WA

1шт.
