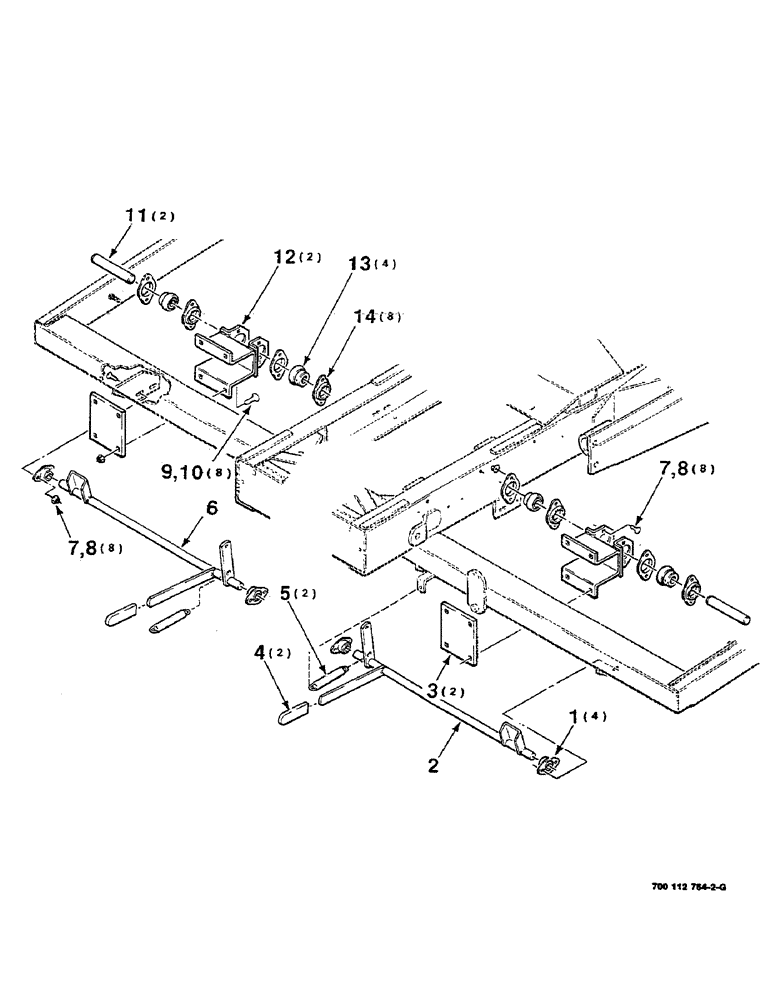

Запчасти Case IH 8581 (10-22) - CART ASSEMBLY, UNLATCHING Accumulator

1

A63366

SPHERICAL BEARING,19mm ID

BEARING - ball, bushing

4шт.

2

700113772

ARM

WA - unlatch, left

1шт.

3

700113784

COVER PLATE

PLATE - clamp

2шт.

4

827360

HANDLE

GRIP - handle

2шт.

5

58941

SPRING

- extension

2шт.

6

700113773

ARM

WA - unlatch, right

1шт.

7

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

16шт.

8

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

16шт.

9

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

8шт.

10

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

8шт.

11

6810808

SHAFT

2шт.

12

700113763

SUPPORT

WA - shaft

2шт.

13

50302

SPHERICAL BEARING,25.4 mm ID x 52 mm OD x 30.96 mm

- spherical

4шт.

14

50591

FLANGE,52mm

- bearing

8шт.
