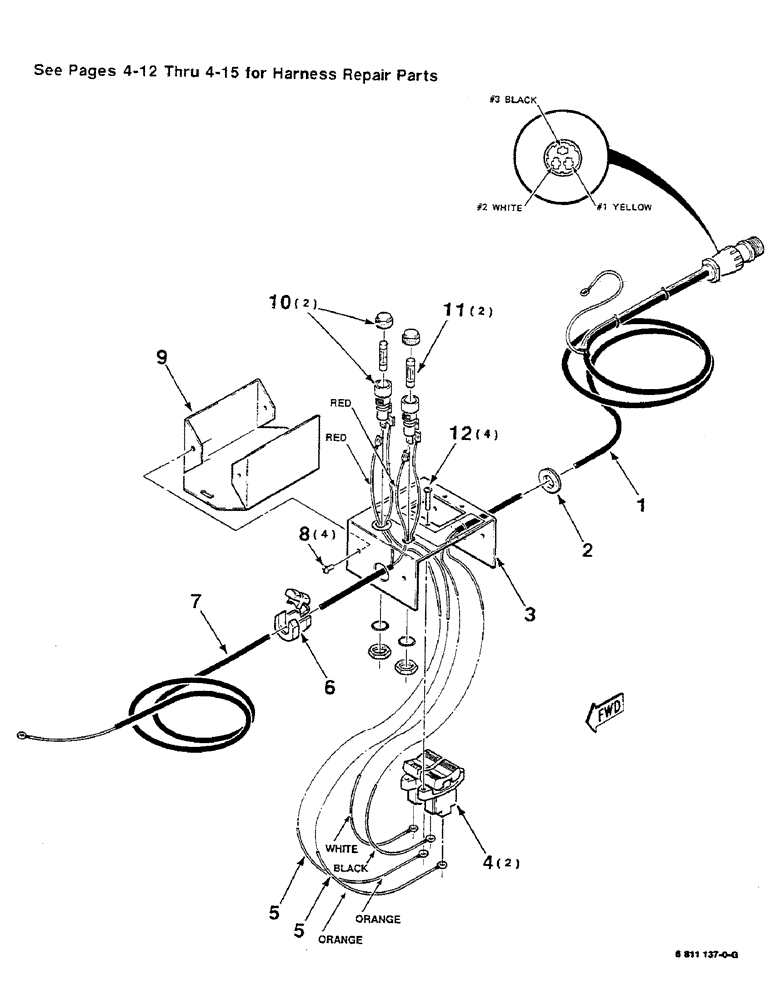

Запчасти Case IH 8581 (10-18) - ELECTRICAL CONTROL BOX ASSEMBLY, BALE UNLOAD, 6811137 CONTROL BOX ASSEMBLY COMPLETE Accumulator

6811137

CONTROL UNIT

CONTROL BOX ASSEMBLY COMPLETE

1шт.

1

700706486

WIRE HARNESS

HARNESS - cable

1шт.

2

248-2375

GROMMET,5/8" ID x 7/8" Groove Dia, Str Cut

- rubber

1шт.

3

6811145

TOP

ASSEMBLY - control, box (Includes Decal)

1шт.

4

8798159

SWITCH

- rocker

2шт.

5

8798167

ELECTRICAL WIRE

WIRE - electrical

2шт.

6

700708341

BUSHING

- wire, strain

1шт.

7

700706485

WIRE HARNESS

HARNESS - wire

1шт.

8

19-1027

SELF-TAP SCREW,Cross Truss Hd, #8 x 1/2"

#8-18 X 1/2 CRTHTFTS

4шт.

9

6811152

BOTTOM

ASSEMBLY - control, box (Includes Decal)

1шт.

10

376852R91

HOUSING

HOLDER - fuse

2шт.

11

8025645

FUSE

- 30 Amp (Slow Blow)

2шт.

12

70-30616

SCREW,Slotted Pan Hd, #6-32 x 1"

#6-32 X 1 SRHMS

4шт.
