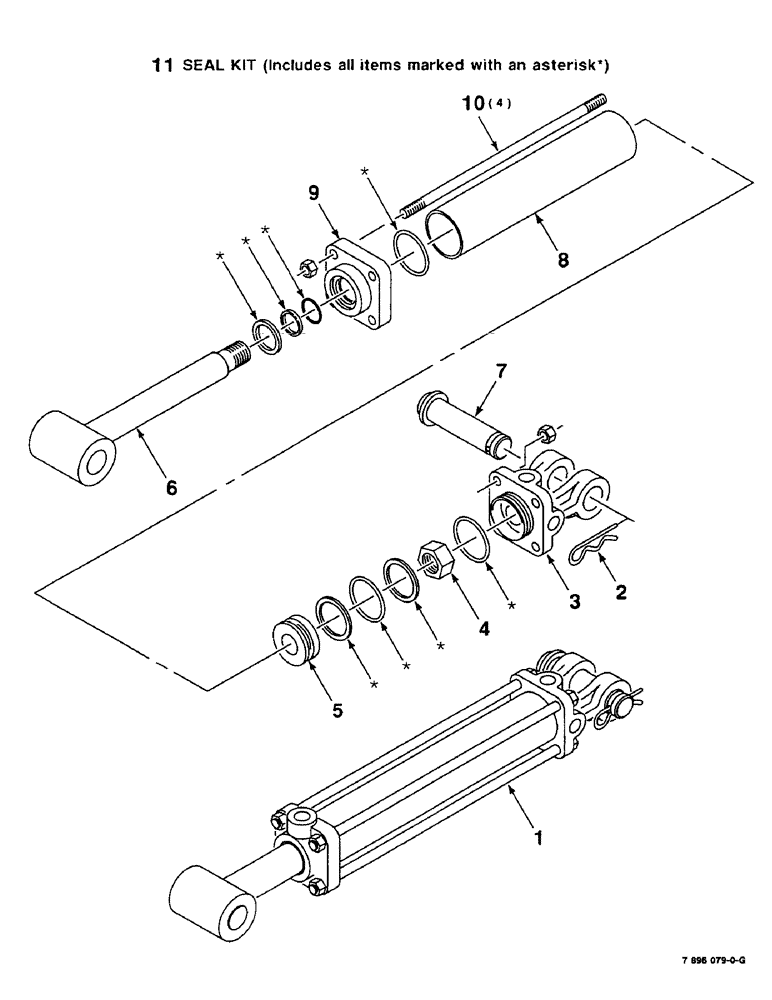

Запчасти Case IH 8581 (10-16) - HYD. CYLINDER ASSY, ACCUMULATOR, 7896079 HYD. CYLINDER ASSY COMPLETE, 3-1/2" BORE X 10" STROKE Accumulator

1

7896079

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 254mm Stroke

HYDRAULIC CYLINDER COMPLETE (3-1/2 Inch Bore x 10 Inch Stroke)

1шт.

2

62455

PIN, SPLIT (COTTER)

HAIRPIN COTTER

1шт.

3

8040263

BASE

CLEVIS - cylinder base

1шт.

4

7735087

LOCK NUT

- piston

1шт.

5

B17275

PISTON

1шт.

6

8732265

ROD

ASSEMBLY - piston

1шт.

7

811119C1

PIN

- clevis

1шт.

8

8040271

TUBE

1шт.

9

8040305

HEAD (CYLINDER)

HEAD - cylinder

1шт.

10

8040289

ROD

TIE - rod

4шт.

11

B17232

SEAL

O-RING AND SEAL REPAIR KIT

1шт.
