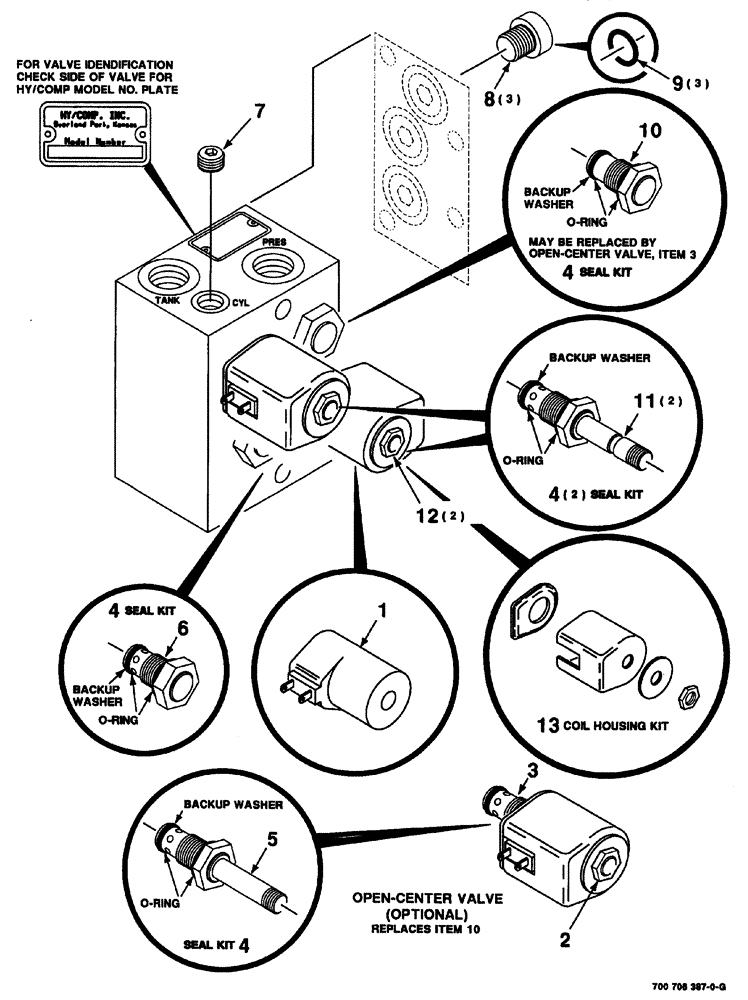

Запчасти Case IH 8576 (08-004) - HYDRAULIC CONTROL VALVE ASSEMBLY (BALE DENSITY), 700706387 VALVE ASSEMBLY COMPLETE (07) - HYDRAULICS

1

700710176

COIL

12 V

1шт.

2

700706156

NUT

1шт.

3

700706386

CONTROL VALVE

(optional), Includes: Ref. 1, 2, 4, 5 and 13

1шт.

4

149942C1

SEAL KIT

5шт.

5

700706155

VALVE PRESSURE RELIE

1шт.

6

700707832

VALVE PRESSURE RELIE

1шт.

7

700706609

ORIFICE

PLUG

1шт.

8

700706604

PLUG

O-RING, Includes: Ref. 9

3шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

10

700706602

PLUG

cartridge, Includes: Ref. 4

1шт.

11

700706153

HYDRAULIC VALVE

2шт.

12

700706151

NUT

2шт.

13

700707826

REPAIR KIT

KIT, housing

1шт.
