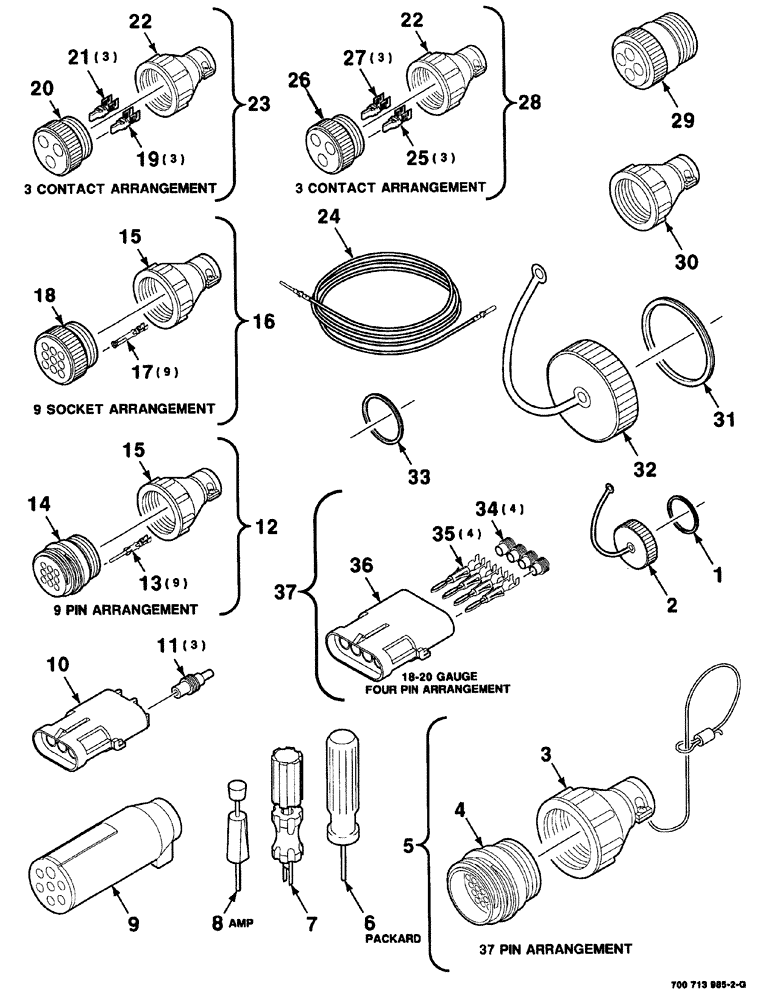

Запчасти Case IH 8576 (04-016) - ELECTRICAL HARNESS SERVICE PARTS - CONTINUED (06) - ELECTRICAL

1

700712896

SEAL

peripheral, shell size 13

1шт.

2

700707016

CAP

SEALING, shell size 13

1шт.

3

245491C1

ELEC CONNECTOR

clamp cable, shell size 23

1шт.

4

700719293

WIRE CONNECTOR

RECEPTACLE standard, 37 pin, male

1шт.

5

700713300

ELEC CONNECTOR

ASSEMBLY, Includes: Ref. 3, 4 and cable

1шт.

6

700707012

TERMINAL CONNECTOR

TOOL, REPAIR

1шт.

7

700707014

TERMINAL CONNECTOR

TOOL, REPAIR

1шт.

8

CAS1631

TOOL KIT

CONNECTOR REPAIR

1шт.

9

121646C1

TERMINAL CONNECTOR,Female

PLUG, 7 pole cable

1шт.

10

700706413

ELEC CONNECTOR

SHROUD, 3 pin, male

1шт.

11

700714829

PLUG

cavity

1шт.

12

1713973

ELECTRICAL WIRE

WIRE KIT harness repair, Includes: Ref. 13, 14 and 15

1шт.

13

700718605

TERMINAL

PIN male, type III, Sel. Gold/Nickel

1шт.

14

225172C1

ROD, CONNECTING

RECEPTACLE 9 pin, male

1шт.

15

700709708

CLAMP

CABLE, shell size 13

1шт.

16

1713981

KIT

harness repair, Includes: Ref. 15, 17 and 18

1шт.

17

700718608

TERMINAL

SOCKET female, type x, Gold/Nickel

1шт.

18

60-6127T2

CONNECTION

PLUG receptacle, 9 socket, female

1шт.

19

700709706

TERMINAL

CONTACT female, 10-8 gauge

1шт.

20

225165C1

ELEC CONNECTOR

3 pin receptacle, male

1шт.

21

700710620

TERMINAL

female, 16-12 gauge

1шт.

22

225153C1

CONTACT HOUSING

clamp cable, shell size 17

1шт.

23

1714005

PACKAGE,SERVICE

KIT harness repair, 3 contact, female, Includes: Ref. 19, 20, 21 and 22

1шт.

24

700708333

WIRE

TEST

1шт.

25

225166C1

ELEC. TERMINAL PIN,Male, Tin, 1.0 - 2.0mm

CONTACT male, silver, 12-16 gauge

1шт.

26

700710659

CONTACT HOUSING

PLUG receptacle , 3 contact, male

1шт.

27

225167C1

TERMINAL CONNECTOR,Male, 5 - 6 mm2

CONTACT male, silver, 10 gauge

1шт.

28

1713999

PACKAGE,SERVICE

KIT harness repair, 3 contact, female, Includes: Ref. 22, 25, 26 and 27

1шт.

29

700709232

POWER SOCKET

1шт.

30

700709233

CLAMP

CABLE, shell size 11

1шт.

31

700711660

SEAL

shell size 23

1шт.

32

700712983

CAP

with chain, shell size 23

1шт.

33

700711829

SEAL

PERIPHERAL

1шт.

34

700706400

PLUG

18-20 gauge

1шт.

35

700706401

TERMINAL

PIN male, 18-20 gauge

1шт.

36

700708964

WIRE CONNECTOR

SHROUD, 4 pin, male

1шт.

37

700709354

REPAIR KIT

KIT harness repair, 4 pin, shroud, male, Includes: Ref. 34, 35 and 36

1шт.
