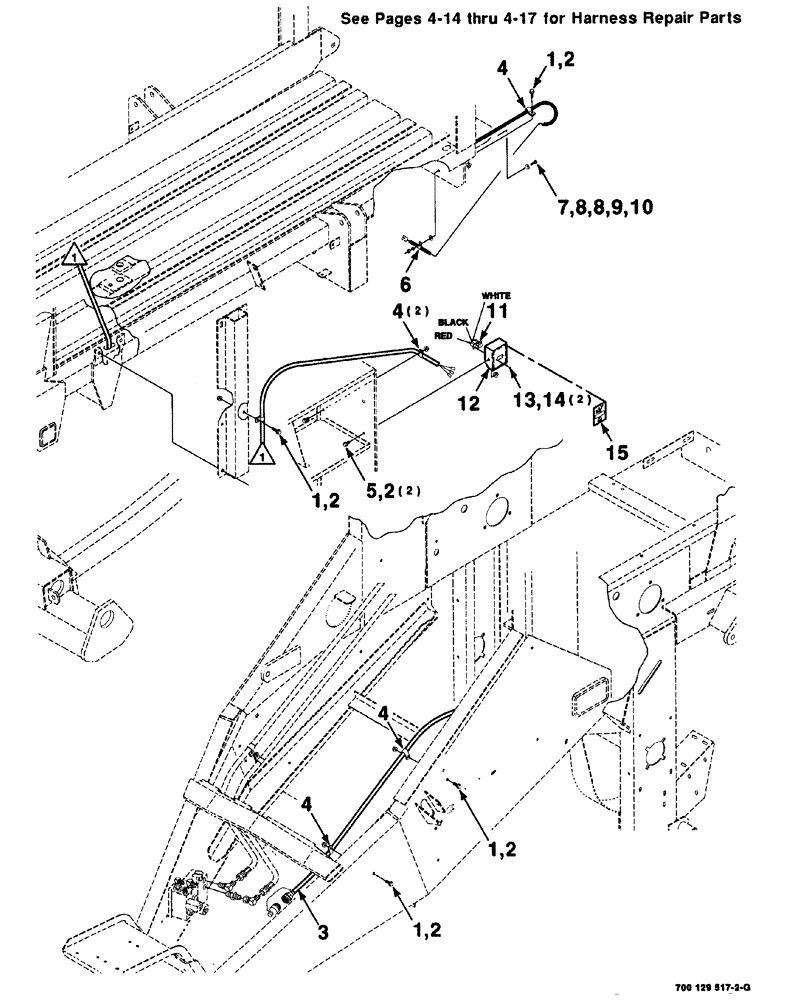

Запчасти Case IH 8576 (04-010) - BALE EJECTOR ELECTRICAL ASSEMBLY (06) - ELECTRICAL

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

3

700714114

HARNESS

CABLE, ejector

1шт.

4

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

5шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

6

700711751

CLAMP

3/8

1шт.

7

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 x 1 C

1шт.

8

495-21031

WASHER,1/4"

2шт.

9

492-11025

LOCK WASHER,1/4"

1шт.

10

425-104

NUT,1/4"-20, Cl 5

1шт.

11

700714096

SWITCH

rocker

1шт.

12

700133172

SUPPORT

SWITCH

1шт.

13

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

#6-32 x 3/8 CRPHMS GR 60M

2шт.

14

492-11006

LOCK WASHER,#6

2шт.

15

700715152

DECAL

ejector switch

1шт.
