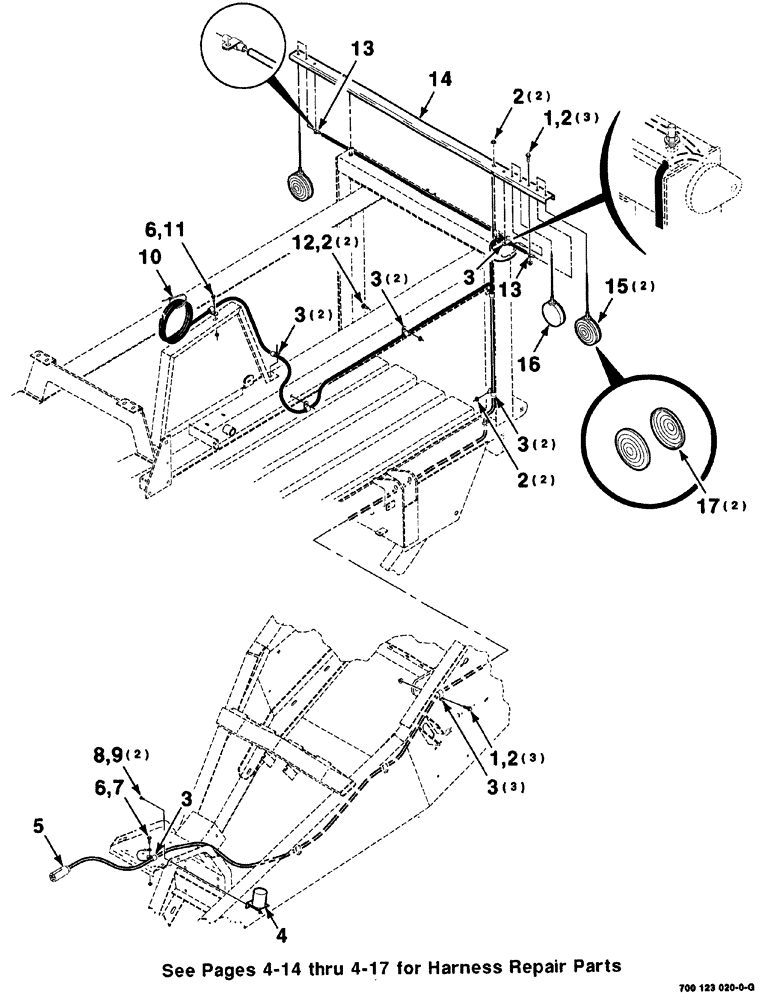

Запчасти Case IH 8576 (04-006) - LIGHTS ASSEMBLY, TAIL AND FLASHER (06) - ELECTRICAL

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

6шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GRG

12шт.

3

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

11шт.

4

183727C1

CAP

PLUG electric

1шт.

5

700710062

HARNESS

LIGHTS

1шт.

6

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 x 1 HWHMS

2шт.

7

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GRG

1шт.

8

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1/4-20 x 1/2 RHSNB

2шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE nylon

1шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

12

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

13

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1/4 ID

2шт.

14

700123423

CHANNEL

1шт.

15

700708036

SIDE LAMP ASSY

flasher, Includes: Ref. 17

2шт.

16

700710290

LAMP, TAIL

LIGHT, TAIL

1шт.

17

700711749

LENS

flasher

2шт.
