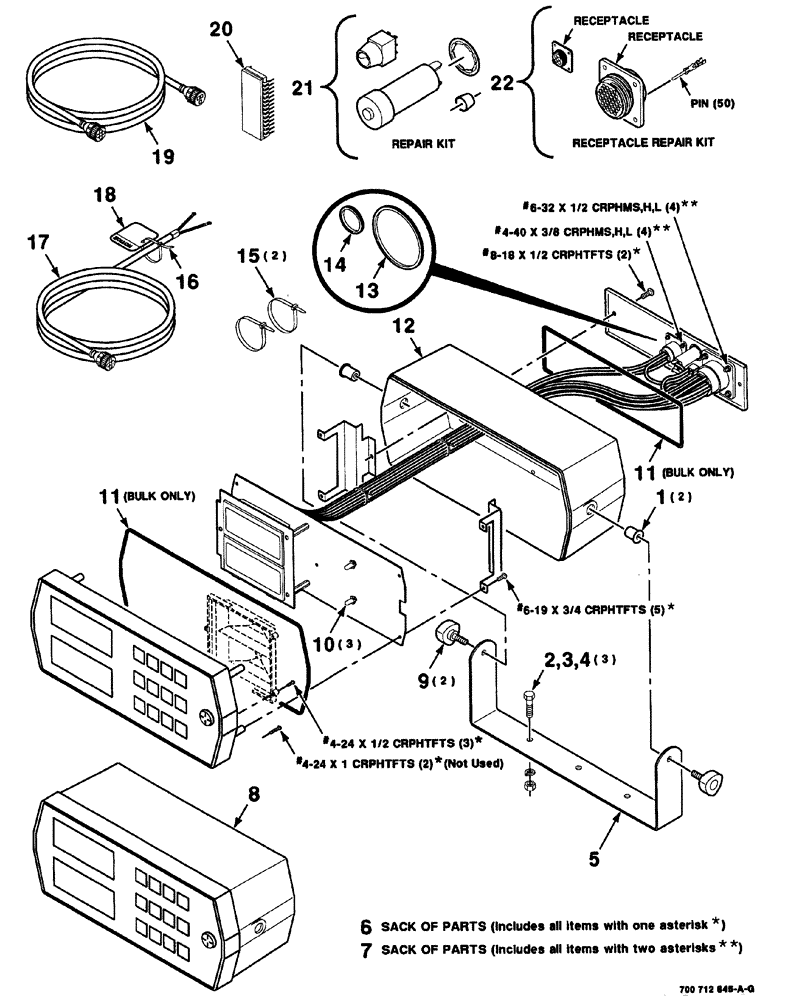

Запчасти Case IH 8576 (04-004) - CONSOLE CONTROL BOX ASSEMBLY (06) - ELECTRICAL

1

700707294

PUSH-ON NUT

rubber well

2шт.

2

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 x 1 C

3шт.

3

492-11025

LOCK WASHER,1/4"

3шт.

4

425-104

NUT,1/4"-20, Cl 5

3шт.

5

700114077

SUPPORT

BOX control

1шт.

6

700707378

KIT

SACK OF PARTS, Includes items in art marked with Asterisk

1шт.

7

700707377

KIT

SACK OF PARTS, Includes items in art marked with Asterisk

1шт.

8

700720120

CONSOLE

BOX control, 6, 7, 10, 11, 12, complete, Includes: Ref. 13, 14, 21 and 22

1шт.

9

700707295

KNOB

2шт.

10

700707457

BULB

and holder

3шт.

11

700707383

GASKET

CORD sponge (10 foot bulk)

1шт.

12

700707296

PANEL

COVER

1шт.

13

700711660

SEAL

1шт.

14

700712102

SEAL

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE cable

2шт.

16

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

17

700707598

WIRE HARNESS

ASSEMBLY (Used from, Serial Range: controller-battery)

1шт.

18

700707683

DECAL

notice

1шт.

19

700712135

WIRE HARNESS

CABLE ASSEMBLY (Used from controller to auxiliary power source)

1шт.

20

700124048

SEE PARTS MARKETING

EPROM, Serial Range: CFH0113001-CFH0117286

1шт.

20

700124050

KIT

EPROM, Serial Range: CFH0117287-CFH0163128

1шт.

21

700707382

REPAIR KIT

repair

1шт.

22

700712134

REPAIR KIT

receptacle repair

1шт.
