Запчасти Case IH 8576 (03-018) - PICKUP GAUGE WHEEL ASSEMBLY Pickup

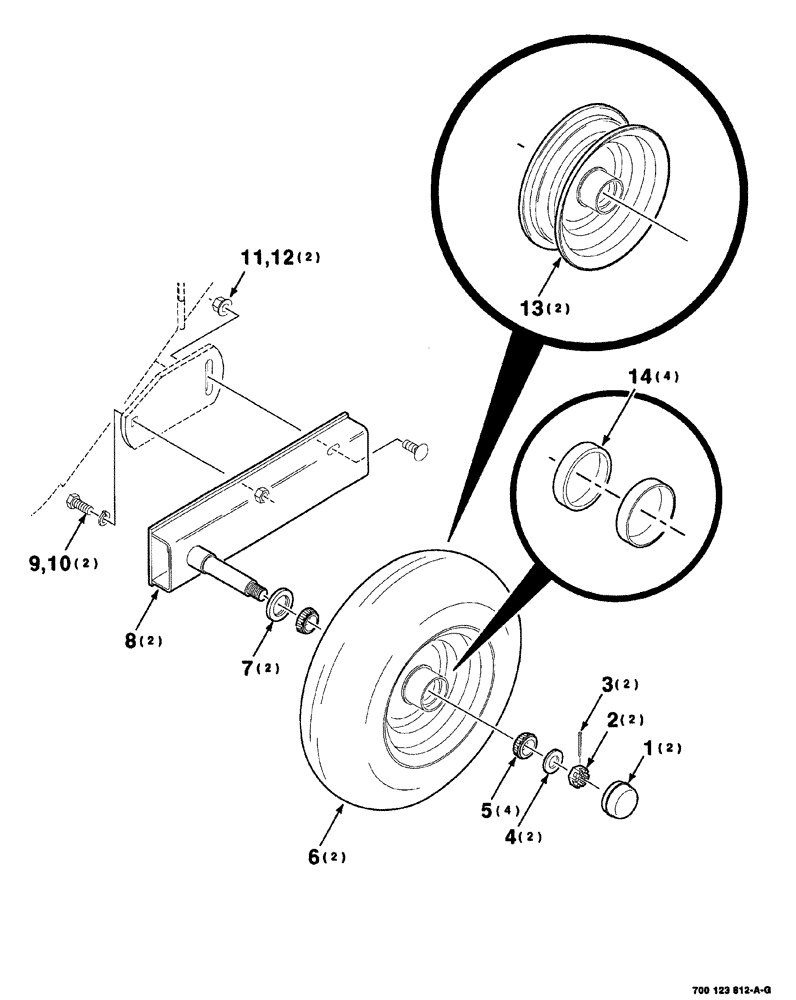

Схема запчастей Case IH 8576 - (03-018) - PICKUP GAUGE WHEEL ASSEMBLY Pickup
13
12
3
9
8
1
2
10
5
4
7
11
14
6

Артикул

Название

Примечание

Количество

1

T27814

CAP

hub

2шт.

2

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4-16

2шт.

3

432-824

COTTER PIN,1/8" x 1 1/2"

2шт.

4

705566

WASHER

hardened plain, 3/4

2шт.

5

D29266

ROLLER BEARING,1" ID x 0.58"

4шт.

6

700708049

WHEEL

TIRE ASSEMBLY, Includes: Ref. 13 and 14

2шт.

7

474094R91

OIL SEAL

2шт.

8

700123995

STRUT

WA WHEEL

2шт.

9

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

11

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

2шт.

12

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

13

700708048

WHEEL ASSY

WHEEL ASSEMBLY, Includes: Ref. 14

2шт.

14

572564R1

BEARING CUP

cup

4шт.

Выбрано товаров: 14
