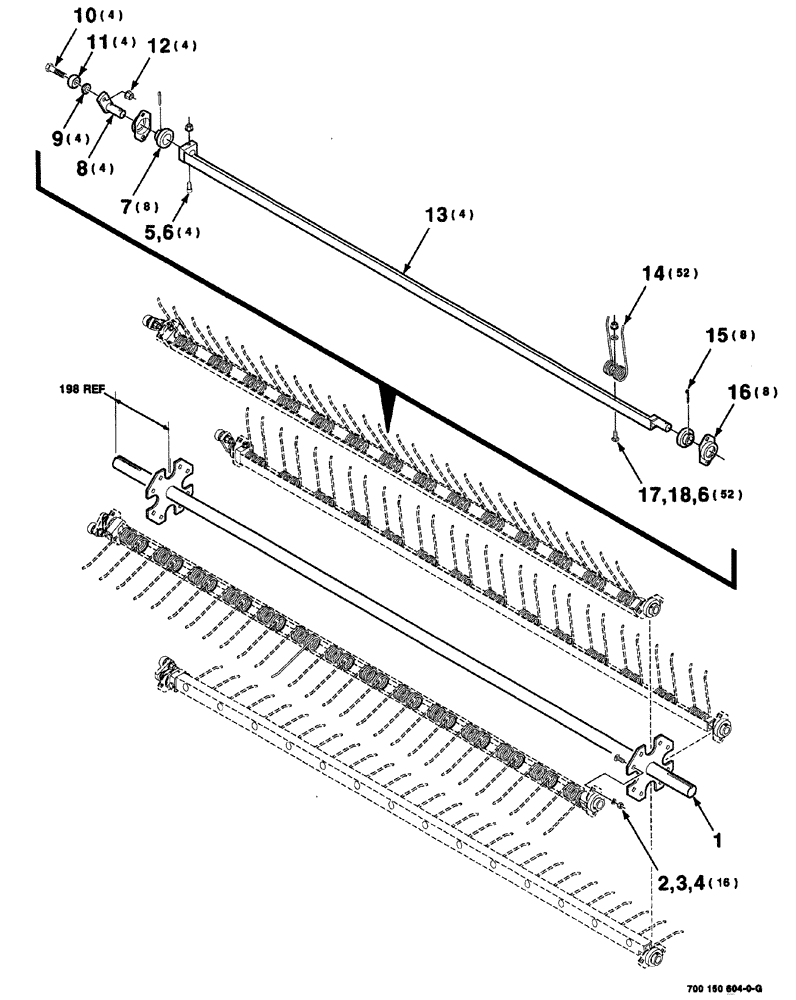

Запчасти Case IH 8576 (03-016) - PICKUP ROTOR ASSEMBLY Pickup

1

700108609

ROTOR

WA

1шт.

2

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

16шт.

3

492-11038

LOCK WASHER,3/8"

16шт.

4

425-106

NUT,3/8"-16, Cl 5

16шт.

5

61-33836

HEX SOC SCREW,3/8 - 16 x 2-1/4"

special, 3/8-16 x 2-1/4 HSHCS

4шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

TIRE ASSEMBLY, Includes: Ref. 13 and 14

56шт.

7

710392

BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm

cylindrical

8шт.

8

700129657

CRANK

WA

4шт.

9

700137750

SPACER

4шт.

10

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

1/2-20 x 2 C GR8

4шт.

11

700720050

CAM FOLLOWER

CAM, follower

4шт.

12

700707867

NUT

1/2-20 HFTLN GR/G

4шт.

13

700129655

ANGLE

WA

4шт.

14

700714826

TORSION SPRING,Coiled, 2 Prong, 177mm L

double

52шт.

15

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

8шт.

16

700108622

FLANGED BEARING

bearing

8шт.

17

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 RHSNB

52шт.

18

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

52шт.
