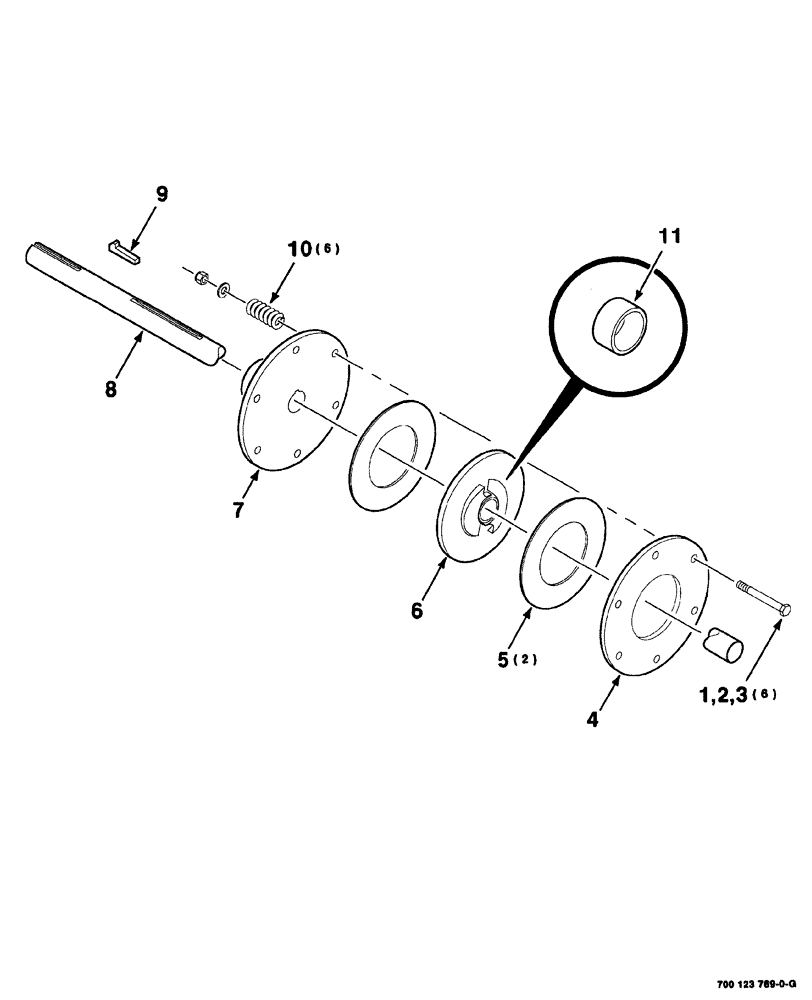

Запчасти Case IH 8576 (03-014) - PICKUP SLIP CLUTCH ASSEMBLY Pickup

1

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

6шт.

2

495-21044

WASHER,3/8"

6шт.

3

231-1406

LOCK NUT,3/8"-16, GB

6шт.

4

392464

LARGE PLATE

PLATE, LARGE pressure

1шт.

5

700711025

CLUTCH PLATE,92mm ID x 161.92mm OD x 3.18mm Thk

friction

2шт.

6

700108665

CLUTCH ASSEMBLY

Includes: Ref. 11

1шт.

7

700108661

PLATE

WA CLUTCH

1шт.

8

700123770

SHAFT

1шт.

9

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

gib, 1/4 x 1-1/2

1шт.

10

58107

SPRING

compression

6шт.

11

852749

BRONZE BUSHING

bronze

1шт.
