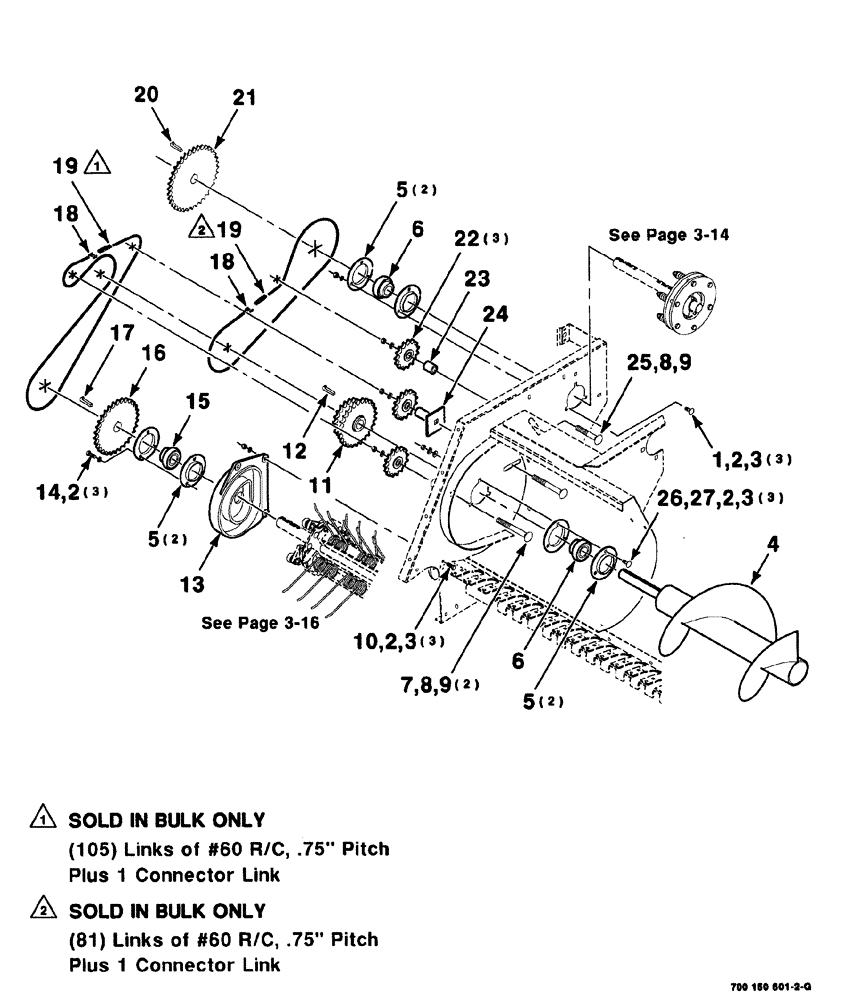

Запчасти Case IH 8576 (03-012) - PICKUP DRIVE AND AUGER ASSEMBLY - RIGHT Pickup

1

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3шт.

2

492-11038

LOCK WASHER,3/8"

12шт.

3

425-106

NUT,3/8"-16, Cl 5

9шт.

4

700123765

AUGER

WA right

1шт.

5

617863R1

FLANGED BEARING

bearing

6шт.

6

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

spherical

2шт.

7

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

5/8-11 x 5 RHSNB

2шт.

8

492-11062

BEARING WASHER,5/8"

3шт.

9

425-1010

NUT,5/8"-11, G5

3шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C

3шт.

11

700123775

SPROCKET ASSY.

WA 20 and 26 tooth

1шт.

12

61978

KEY

gib, 1/4 x 2-1/2

1шт.

13

700116125

HOUSING

TRACK cam

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

15

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

spherical

1шт.

16

700123774

SPROCKET ASSY.

WA 30 tooth

1шт.

17

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

gib, 5/16 x 1-1/2

1шт.

18

241-1316

LINK,19.05mm Pitch

connector, #60 R/C

2шт.

19

7086002

CHAIN (AG)

roller, #60 (10 foot bulk)

2шт.

20

61739

KEY

gib, 1/4 x 1/4

1шт.

21

700108659

SPROCKET ASSY.

WA 36 tooth

1шт.

22

541857R92

SPROCKET,15T

ZERK special, straight, 1/8-27

3шт.

23

6268494

SPACER

1шт.

24

700108636

SUPPORT

WA

1шт.

25

433-1056

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2 RHSNB

1шт.

26

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 RHSNB

3шт.

27

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

3шт.
