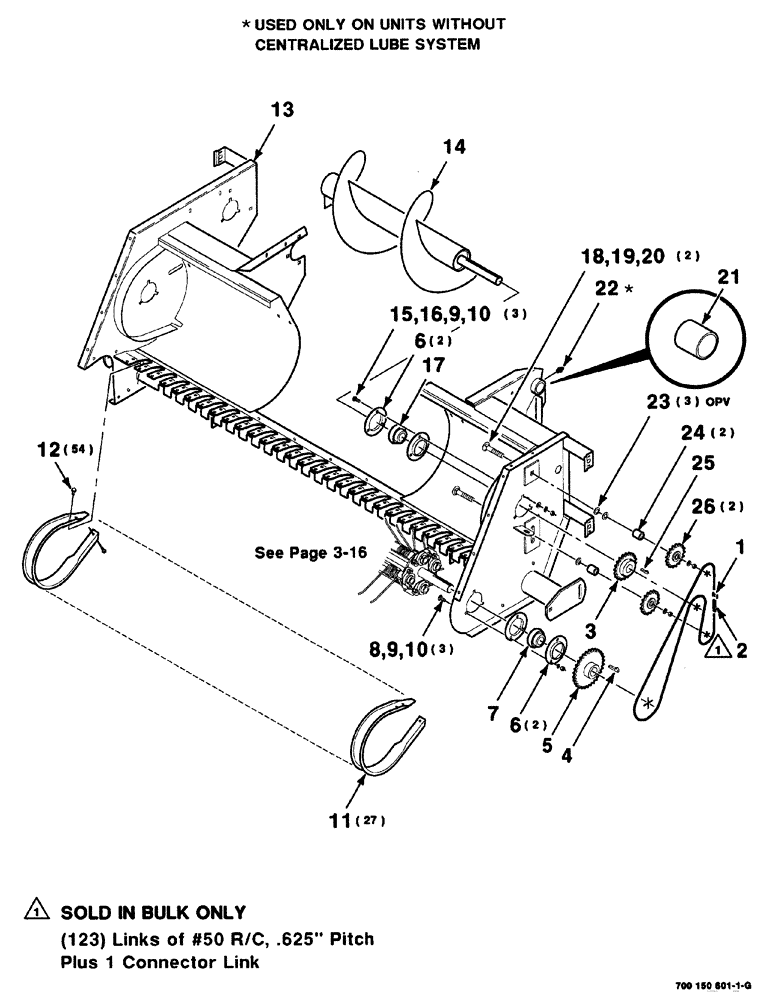

Запчасти Case IH 8576 (03-010) - PICKUP DRIVE AND AUGER ASSEMBLY - LEFT Pickup

1

47530

LINK, CONNECTING

#50 R/C

1шт.

2

1791DX

CHAIN (AG),79 Links x 15.88mm = 1254.13mm

N roller, #50 (10 foot bulk)

1шт.

3

86439

SPROCKET ASSY.

WA 20 tooth

1шт.

4

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

5/16 x 1-1/2 GIB KEY

1шт.

5

700123773

SPROCKET ASSY.

WA 30 tooth

1шт.

6

617863R1

FLANGED BEARING

bearing

4шт.

7

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

spherical

1шт.

8

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3шт.

9

492-11038

LOCK WASHER,3/8"

6шт.

10

425-106

NUT,3/8"-16, Cl 5

6шт.

11

700129658

TINE BAR

WRAPPER

27шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

54шт.

13

700150602

SENDER UNIT

SENDER PICKUP WA, Includes: Ref. 21

1шт.

14

700123764

AUGER

WA left

1шт.

15

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 RHSNB

3шт.

16

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

3шт.

17

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

spherical

1шт.

18

433-1056

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2 RHSNB

2шт.

19

492-11062

BEARING WASHER,5/8"

2шт.

20

425-1010

NUT,5/8"-11, G5

2шт.

21

6186506

BUSHING,38.2mm ID x 44.58mm OD x 50.8mm L

bronze

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

23

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

5/8 x 18 gauge NRMB

3шт.

24

6176655

BUSHING

SPACER

2шт.

25

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

gib, 1/4 x 1-1/2

1шт.

26

211623C91

SPROCKET

SPROCKET idler, 17 tooth

2шт.
