Запчасти Case IH 8576 (03-006) - PICKUP MOUNTING ASSEMBLY, S.N. CFH0163129 AND LATER Pickup

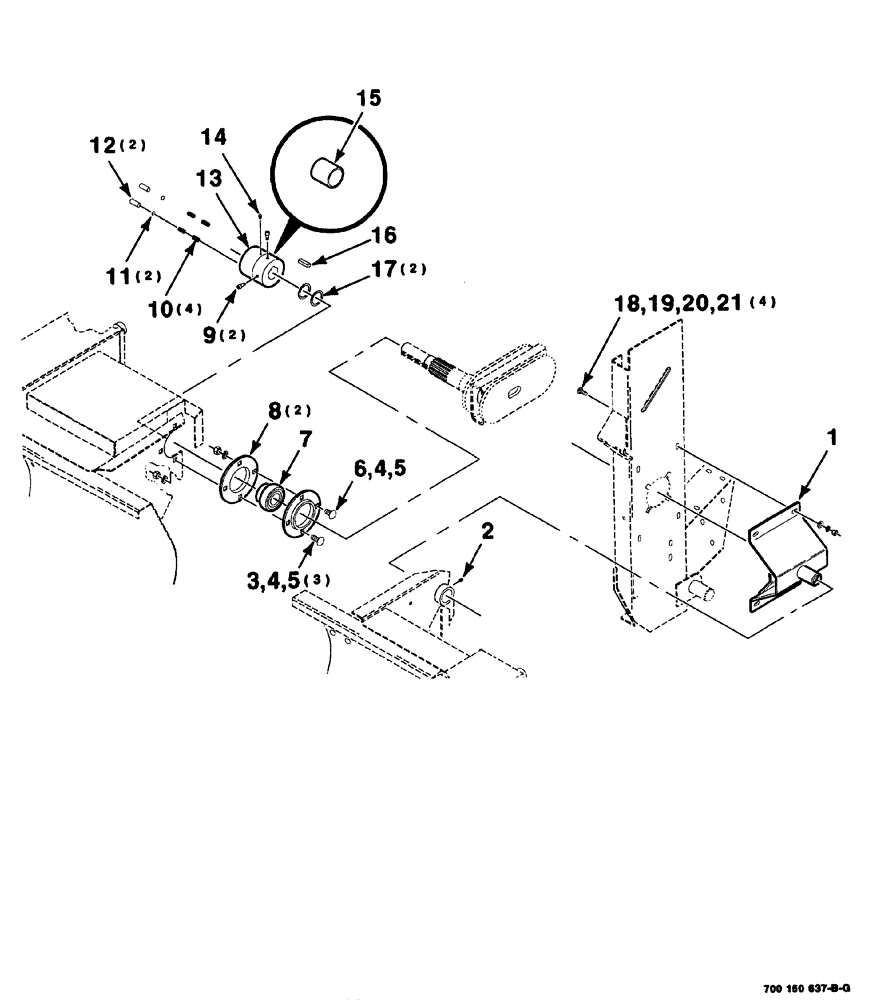

Схема запчастей Case IH 8576 - (03-006) - PICKUP MOUNTING ASSEMBLY, S.N. CFH0163129 AND LATER Pickup
2
14
3
20
17
4
11
1
18
5
21
13
7
19
9
15
4
5
6
16
8
12
10

Артикул

Название

Примечание

Количество

1

700123797

SUPPORT

pickup, left

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

3

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

3шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

4шт.

6

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 RHSNB

1шт.

7

51318

BEARING

spherical

1шт.

8

50583

FLANGED BEARING

bearing

2шт.

9

83-616

SET SCREW,Hex Soc, 3/8"-16 x 1"

3/8-16 x 1 CPHSSS

2шт.

10

58511

COMPRESSION SPRING

4шт.

11

700108669

LARGE PLATE

PLATE, LARGE

2шт.

12

37-1820

DOWEL,1/2" x 1 1/4"

PIN, 1/2 x 1-1/4

2шт.

13

700137781

HUB

ASSEMBLY, Includes: Ref. 15

1шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

15

740233

BUSHING

OILITE

1шт.

16

63

WASHER

key, 3/8 x 3/8 x 1-1/2

1шт.

17

NLS

NO LONGER SERVICED

1-3/4 x 14 gauge NRMB

2шт.

18

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

4шт.

19

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

4шт.

20

492-11038

LOCK WASHER,3/8"

4шт.

21

425-106

NUT,3/8"-16, Cl 5

4шт.

Выбрано товаров: 21
