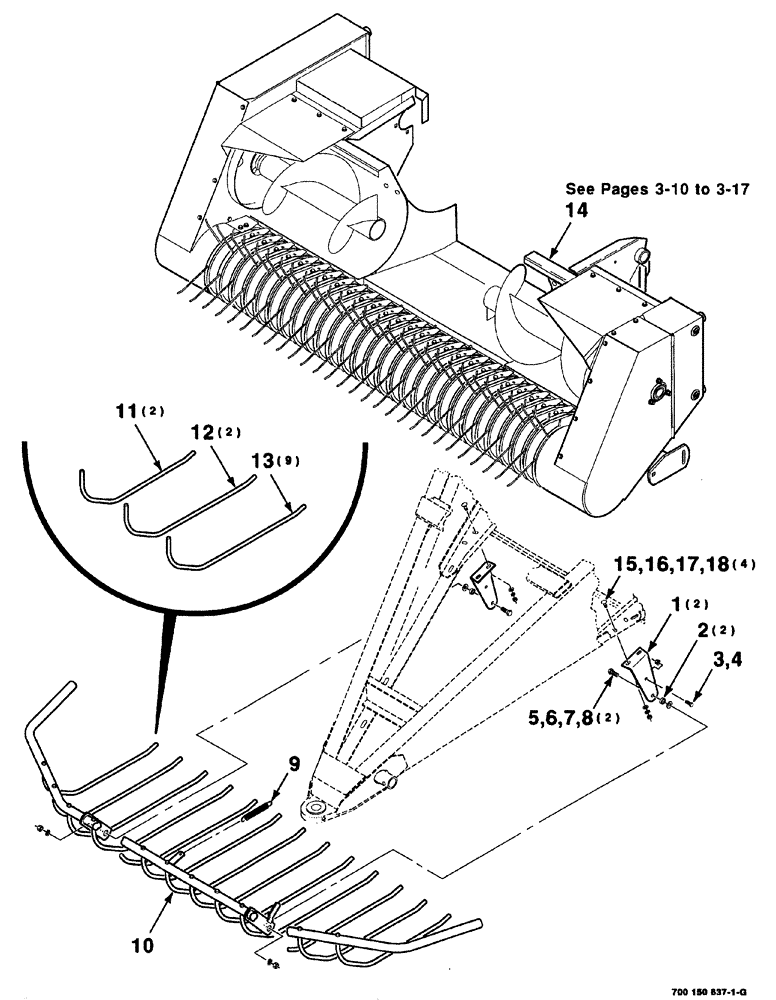

Запчасти Case IH 8576 (03-002) - PICKUP (COMPLETE) AND WINDGUARD ASSEMBLY Pickup

1

700123787

SUPPORT

2шт.

2

700708272

BUSHING

SPACER

2шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

4

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

1шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

6

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

8

425-108

NUT,1/2" - 13, Gr 5

2шт.

9

758441

SPRING

extension

1шт.

10

700123777

GUARD

WA, Includes: Ref. 11,12 and 13

1шт.

11

700123782

ROD

outer

2шт.

12

700123781

ROD

2шт.

13

700123780

ROD

496-11041

9шт.

14

700150600

ASSEMBLY

PICKUP

1шт.

15

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

4шт.

16

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

4шт.

17

492-11038

LOCK WASHER,3/8"

4шт.

18

425-106

NUT,3/8"-16, Cl 5

4шт.
