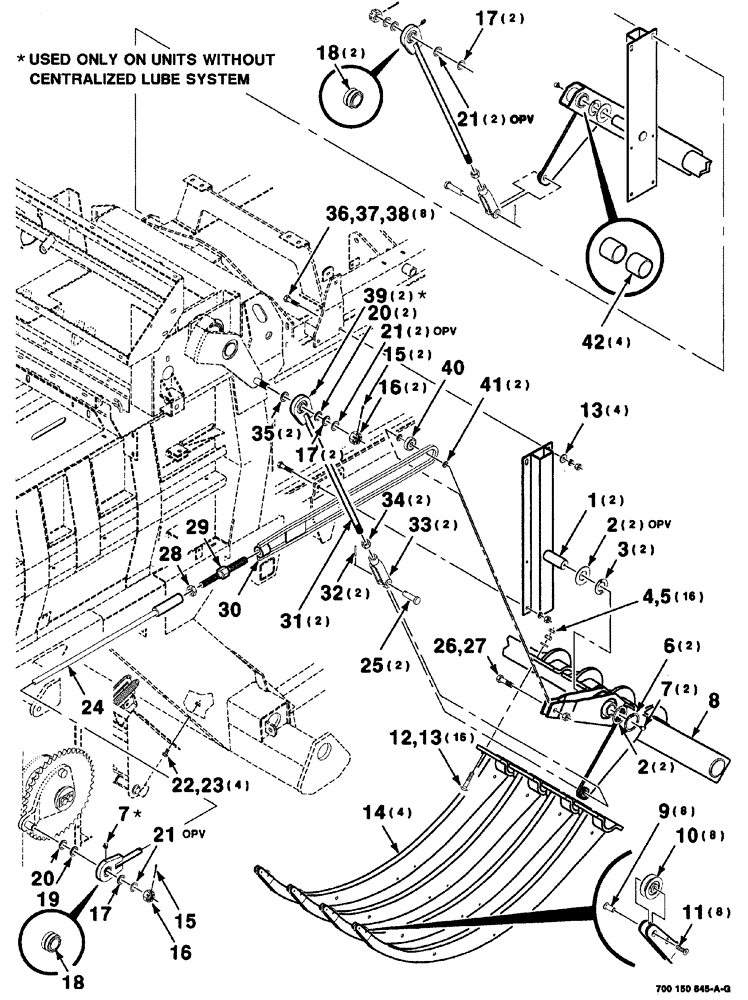

Запчасти Case IH 8576 (02-040) - NEEDLE ASSEMBLY, S.N. CFH0163129 AND LATER Driveline

1

700150611

PIVOT

WA

2шт.

2

740522

WASHER

1-1/2 x 10 gauge WRMB

4шт.

3

Q3497

WASHER

repair

2шт.

4

700710414

JAM NUT

1/2-13 HJN GR8 BF

16шт.

5

20835R1

NUT,1/2"-13, G8

1/2-13H GR8 NP

16шт.

6

100-16150

SNAP RING,#150, Ext

2шт.

7

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

Used only on units without centralized lube system

3шт.

8

700129675

SUPPORT

WA, Includes: Ref. 42

1шт.

9

866566

FASTENER,#10 - 32 x 9/16"

special

8шт.

10

700707700

BALL BEARING,6.48 mm ID x 31.75 mm OD x 13.08 mm

8шт.

11

164-102

HEX SOC SCREW,FLAT, #10 - 32 x 1/2"

special, #10-32 x 1/2 HSFCHCS

8шт.

12

700710413

BOLT,Round, 1/2" - 13 x 2 1/2", Grade 8, BLK

1/2-13 x 2-1/2 RHSNB GR8 NP

16шт.

13

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

20шт.

14

700123233

NEEDLE

Includes: Ref. 9, 10 and 11

4шт.

15

432-1640

COTTER PIN,1/4" x 2 1/2"

1/4" x 2 1/2"

3шт.

16

25-1316

NUT,1"-14, G5

3шт.

17

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

1 x 10 gauge NRMB

5шт.

18

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BEARING, cylindrical

3шт.

19

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 x 14 gauge NRMB

1шт.

20

52324

BUSHING

1-1/4 x 10 gauge NRMB

3шт.

21

52258

BUSHING

1 x 14 gauge NRMB

5шт.

22

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

23

231-5146

FLANGE NUT,3/8"-16

4шт.

24

700129672

ROD

WA, Includes: Ref. 19

1шт.

25

A35113

PIN

clevis, 3/4 x 2

2шт.

26

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 x 2-1/4C

1шт.

27

232-41110

NUT,5/8"-11, GC

1шт.

28

425-1514

JAM NUT,Jam, 7/8"-14, G5

7/8-14 HJN GR2

1шт.

29

6530604

ROD

adjusting

1шт.

30

700113098

STRAP

WA safety

1шт.

31

700137476

ROD

connecting, Includes: Ref. 18

2шт.

32

38-11024

LOCK PIN,5/32" x 1 1/2", Slotted

5/32" x 1 1/2", Slotted

2шт.

33

066332

CLEVIS

2шт.

34

425-1412

JAM NUT,Jam, 3/4"-10, G5

3/4-10 HJN GR2

2шт.

36

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

37

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

38

425-108

NUT,1/2" - 13, Gr 5

8шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Used only on units without centralized lube system

2шт.

40

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

1шт.

41

52233

BUSHING

5/8 x 14 gauge NRMB

2шт.

42

700123261

BRONZE BUSHING

bronze

4шт.
