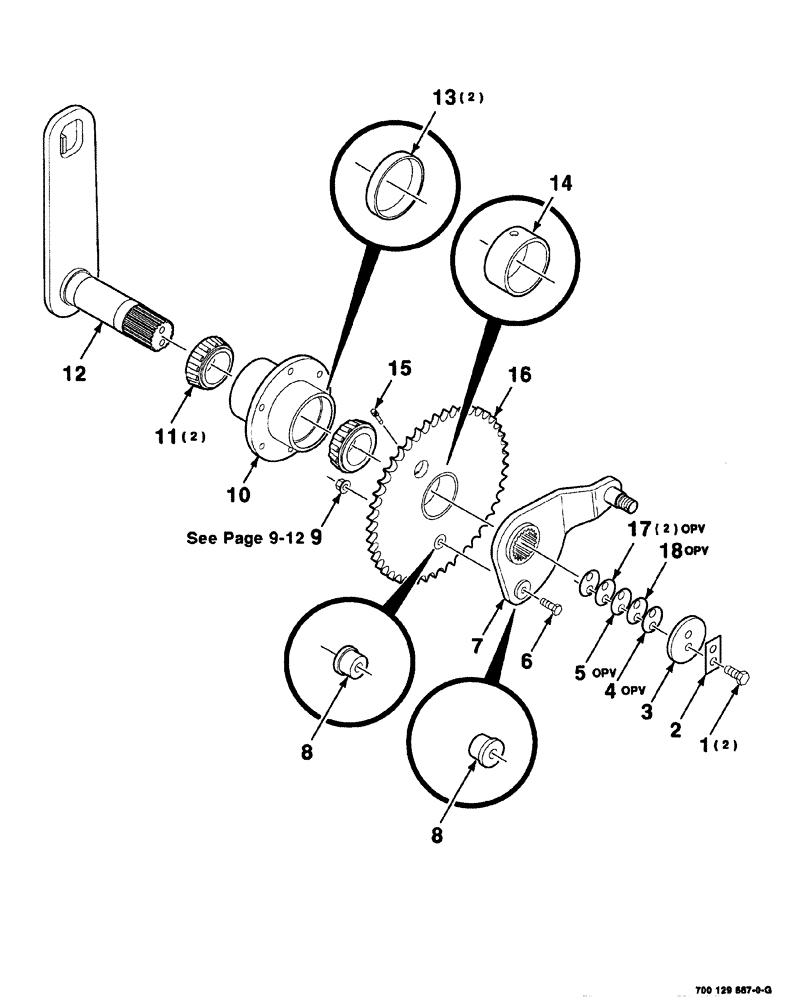

Запчасти Case IH 8576 (02-032) - SHAFT AND SPROCKET ASSEMBLY Driveline

1

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

2

700113045

LOCKING PLATE

TAB

1шт.

3

700113044

RETAINING PLATE

cap retainer

1шт.

4

700707993

SHIM

.020

1шт.

5

700706060

SHIM

.005

1шт.

6

426-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

1шт.

7

700129669

HUB

Includes: Ref. 8

1шт.

8

6526081

BUSHING

BOLT sleeve shear

2шт.

9

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

10

700123311

HUB

ASSEMBLY, Includes: Ref. 13

1шт.

11

700710545

ROLLER BEARING,68.26mm ID x 22mm W

CONE

2шт.

12

700153620

ARM

WA

1шт.

13

29214H

BEARING CUP,110mm OD x 18.82mm W

cup

2шт.

14

700123389

BRONZE BUSHING

bronze

1шт.

15

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1/8-27 x 90 Deg. ZERK

1шт.

16

700129671

SPROCKET ASSY.

45 tooth, Includes: Ref. 8 and 14

1шт.

17

700706059

SHIM

.003

2шт.

18

700706061

SHIM

.010

1шт.
