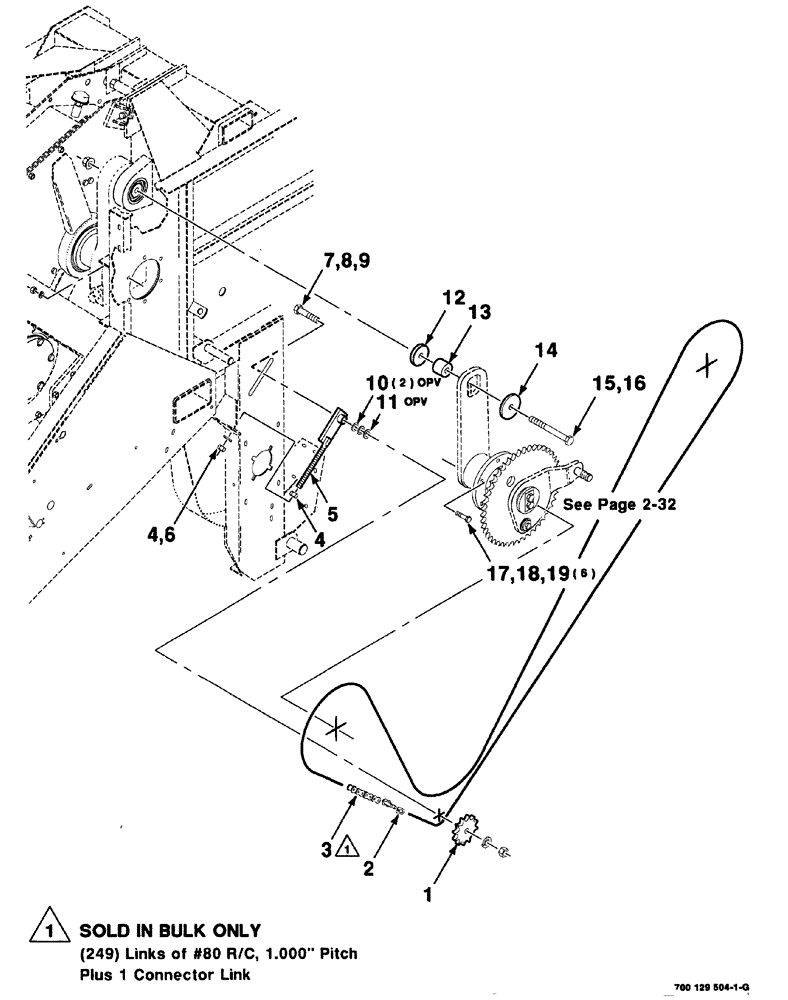

Запчасти Case IH 8576 (02-030) - AUXILIARY DRIVE ASSEMBLY - LEFT Driveline

1

51200277

SPROCKET ASSY.

IDLER, 12 tooth

1шт.

2

241-4418

LINK

CONNECTOR, #80H R/C

1шт.

3

1794DX

CHAIN (AG)

roller, #80H (10 foot bulk)

1шт.

4

425-1010

NUT,5/8"-11, G5

2шт.

5

700123337

SPECIAL BOLT

draw WA

1шт.

6

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

1шт.

7

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

1шт.

8

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

9

425-1012

NUT,3/4"-10, G5

1шт.

10

52183

BUSHING

3/4 x 18 gauge NRMB

2шт.

11

95-81182

WASHER,0.81" ID x 1.25" OD x 0.07" Thk

3/4 x 14 gauge NRMB

1шт.

12

700123122

WASHER

special

1шт.

13

700123335

BUSHING

1шт.

14

6579106

LARGE PLATE

PLATE, LARGE cap

1шт.

15

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

3/4-10 x 7 C

1шт.

16

232-41112

NUT,3/4"-10, GC

1шт.

17

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

6шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

19

425-108

NUT,1/2" - 13, Gr 5

6шт.
