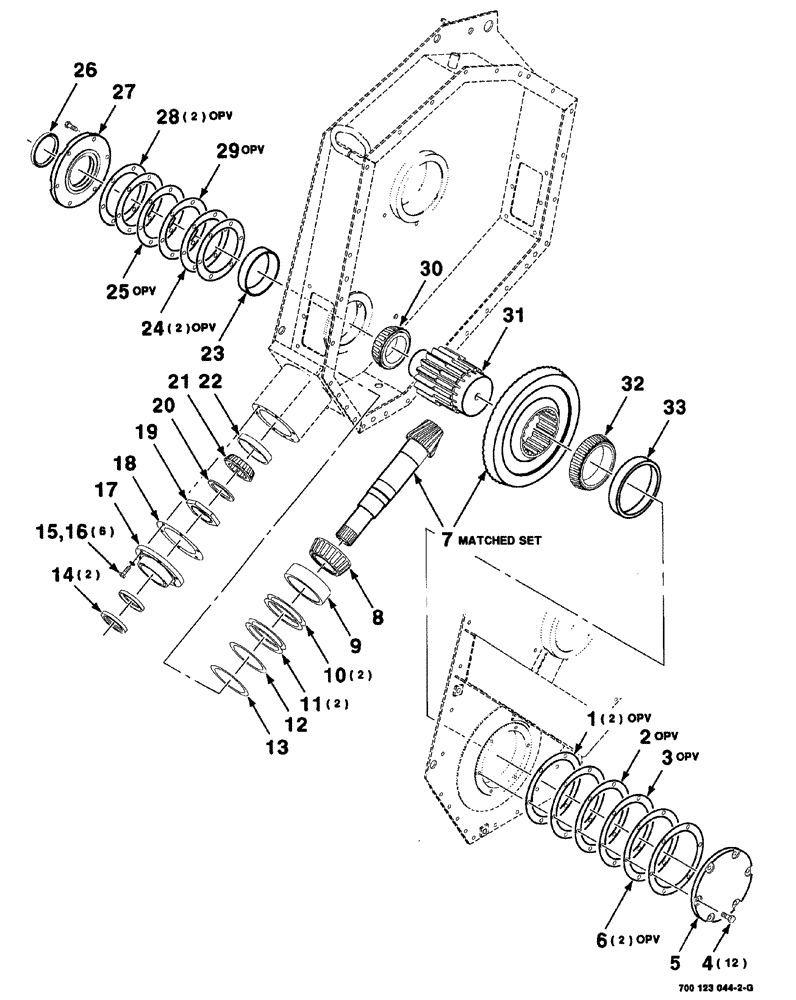

Запчасти Case IH 8576 (02-028) - GEARBOX ASSEMBLY - CONTINUED Driveline

1

700710360

SHIM

left, 0.51/.020

2шт.

1

51200277

SPROCKET ASSY.

IDLER, 12 tooth

1шт.

2

700710359

SHIM

left, 0.25/.010

1шт.

3

700710358

SHIM

left, 0.13/.005

1шт.

4

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

12шт.

5

700123102

CAP

left

1шт.

6

700710357

SHIM

left, 0.08/.003

2шт.

7

700710353

GEAR-SET

ring gear and pinion

1шт.

8

921684C1

BEARING ASSY,2.9528" ID x 5.7087" OD x 2.0079"

1шт.

9

921683C1

BEARING CUP,5.7087" OD x 1.6535"

1шт.

10

700710389

SHIM

pinion, input, 0.51/.020

2шт.

11

700710386

SHIM

pinion, input, 0.08/.003

2шт.

12

700710387

SHIM

pinion, input, 0.13/.005

1шт.

13

700710388

SHIM

pinion, input, 0.25/.010

1шт.

14

700710382

SEAL

oil

2шт.

15

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

16

700708367

WASHER

10 L

6шт.

17

700123101

CAP

front

1шт.

18

700710371

GASKET

front cap

1шт.

19

700710410

NUT

stake

1шт.

20

700710383

WASHER

special

1шт.

21

ST2175

BEARING, CONE,79.25mm ID x 19.05mm W

1шт.

22

700710378

BEARING, CUP

1шт.

23

A50529

BEARING CUP,147.03mm OD x 32.5mm W

1шт.

24

700710364

SHIM

right, 0.51/.020

2шт.

25

700710362

SHIM

right, 0.13/.005

1шт.

26

700701720

SEAL

oil

1шт.

27

700123103

CAP

right

1шт.

28

700710361

SHIM

right 0.08/.003

2шт.

29

700710363

SHIM

right 0.25/.010

1шт.

30

A50532

ROLLER BEARING,89.97mm ID x 40.2mm W

bearing

1шт.

31

700710352

PINION

1шт.

32

1-1357

ROLLER BEARING,133.35mm ID x 39.69mm W

bearing

1шт.

33

1-1358

BEARING CUP,190.5mm OD x 33.34mm W

cup

1шт.
