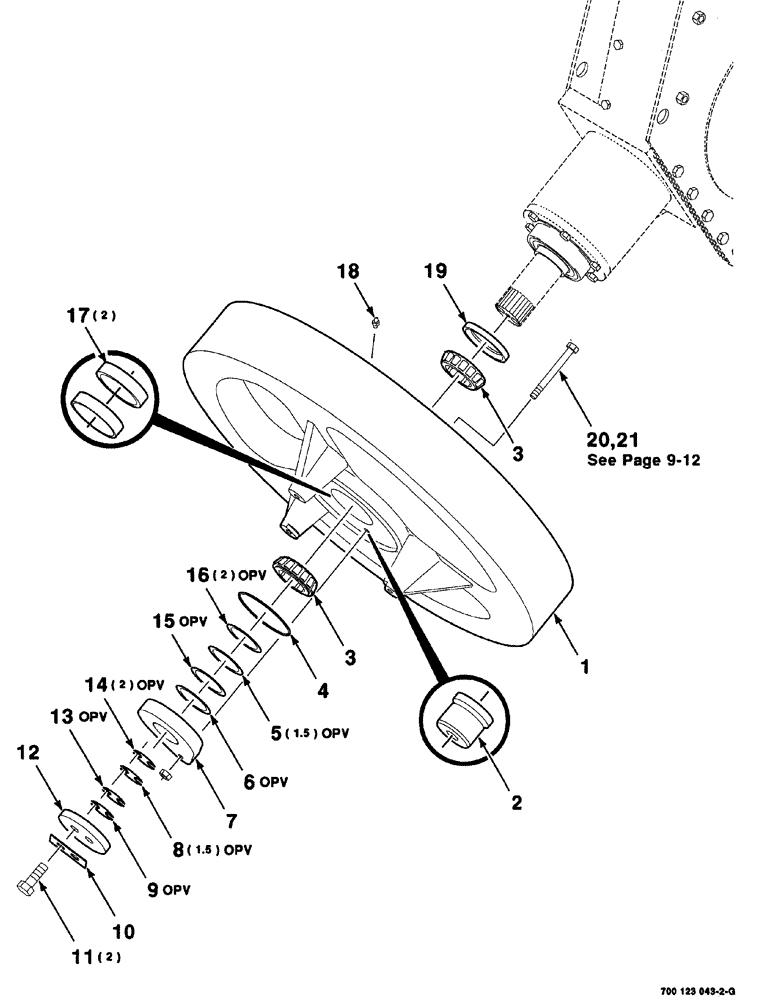

Запчасти Case IH 8576 (02-018) - FLYWHEEL ASSEMBLY Driveline

1

700123112

FLYWHEEL

1/4-28 x 45 Deg. ZERK

1шт.

2

6855555

SLEEVE

shear

1шт.

3

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

2шт.

4

700706050

O-RING

1шт.

5

700710365

SHIM

flywheel, 0.08/.003

1.5шт.

6

700710366

SHIM

flywheel, 0.13/.005

1шт.

7

700123118

HUB

shear

1шт.

8

700710394

SHIM

CAP flywheel, 0.08/.003

1.5шт.

9

700710395

SHIM

CAP flywheel, 0.13/.005

1шт.

10

700113045

LOCKING PLATE

TAB

1шт.

11

628-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

12

700113044

RETAINING PLATE

CAP retainer

1шт.

13

700710396

SHIM

CAP flywheel, 0.25/.010

1шт.

14

700710397

SHIM

CAP flywheel, 0.51/.020

2шт.

15

700710367

SHIM

flywheel, 0.25/.010

1шт.

16

700710369

SHIM

flywheel, 0.51/.020

2шт.

17

625743C1

BEARING CUP,90mm OD x 18.5mm W

cup

2шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

19

700710382

SEAL

oil

1шт.

20

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

21

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.
