Запчасти Case IH 8576 (02-014) - FLYWHEEL CLUTCH U-JOINT ASSEMBLY,700710705 U-JOINT ASSEMBLY-COMPLETE S.N. CFH0113001 THRU CFH0117742 Driveline

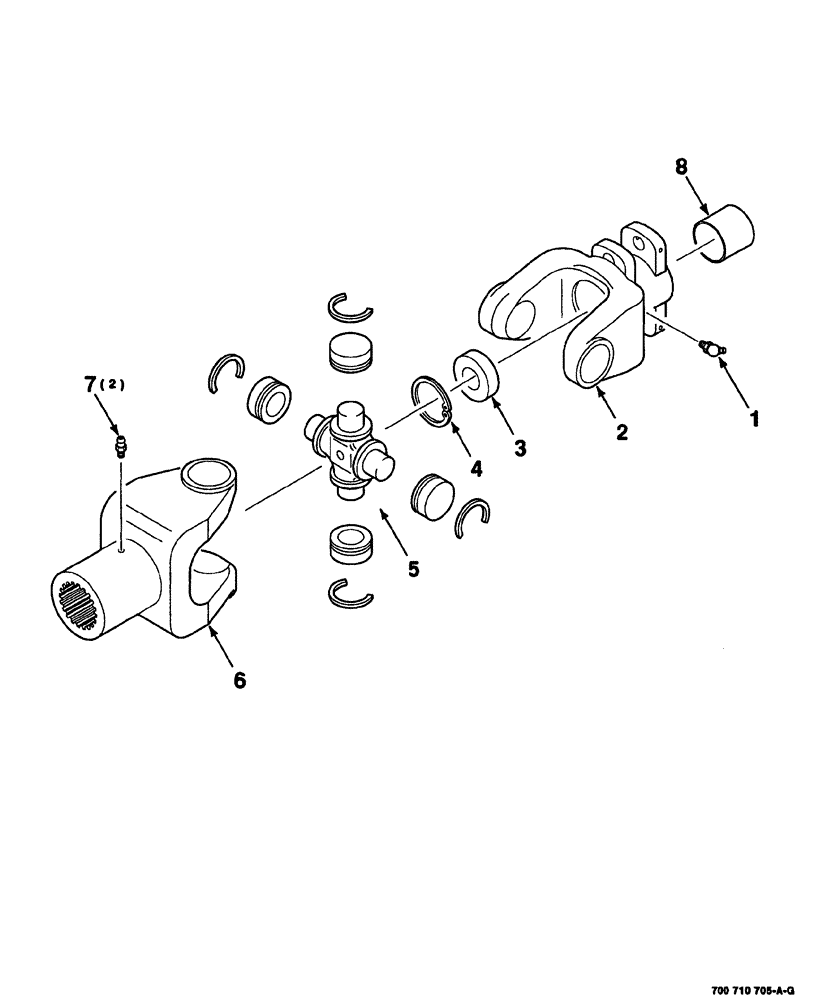

Схема запчастей Case IH 8576 - (02-014) - FLYWHEEL CLUTCH U-JOINT ASSEMBLY,700710705 U-JOINT ASSEMBLY-COMPLETE S.N. CFH0113001 THRU CFH0117742 Driveline
6
5
3
1
4
7
2
8

Артикул

Название

Примечание

Количество

1

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 x 45 Deg. ZERK

1шт.

2

700705823

ASSEMBLY

ASSEMBLY, Includes: Ref. 1

1шт.

3

663625R91

BALL BEARING

1шт.

4

376219R1

SNAP RING,1.653, Int, #165

Ring, Snap, 1.653", Int, #165

1шт.

5

133137C91

KIT

cross and bearing

1шт.

6

700710706

FORK

YOKE

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

8

7852114

BUSHING,34.9mm ID x 38.1mm OD x 33.27mm L

BEARING bronze

1шт.

Выбрано товаров: 8
