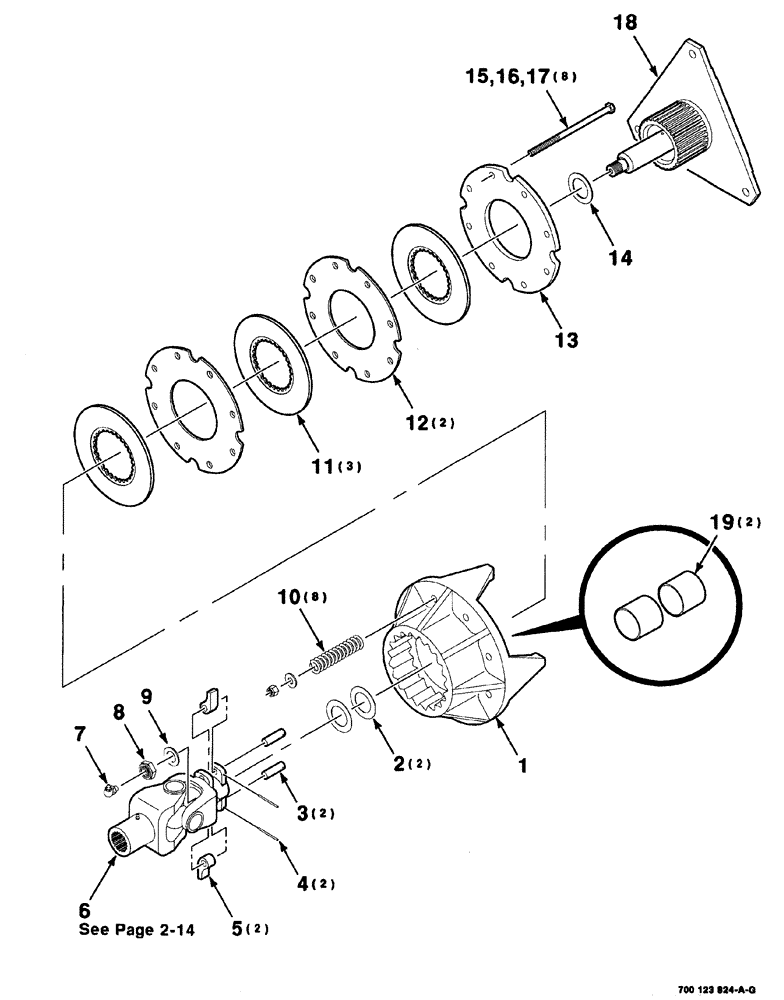

Запчасти Case IH 8576 (02-010) - FLYWHEEL CLUTCH ASSEMBLY, S.N. CFH0113001 THRU CFH0117742 Driveline

1

700113034

CLUTCH HOUSING

Includes: Ref. 19

1шт.

2

6522932

SHIM

CLUTCH

2шт.

3

700134439

PIN

PAWL

2шт.

4

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

2шт.

5

700123827

PAWL

CLUTCH

2шт.

6

700710705

JOINT

U ASSEMBLY

1шт.

7

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

8

131-73

NUT,3/4"-16

3/4-16 LHSN

1шт.

9

95-81182

WASHER,0.81" ID x 1.25" OD x 0.07" Thk

3/4 x 14 gauge NRMB

1шт.

10

858019

SPRING

compression

8шт.

11

700108820

DISC

DISC ASSEMBLY FRICTION

3шт.

12

700112903

CLUTCH PLATE,106mm ID x 220mm OD x 5mm Thk

2шт.

13

6522866

CLUTCH PLATE

1шт.

14

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 x 14 gauge NRMB

1шт.

15

700707998

SCREW,Hex, 3/8" - 16 x 7", Gr 5

B special, 3/8-16 x 7

8шт.

16

495-21044

WASHER,3/8"

8шт.

17

231-1406

LOCK NUT,3/8"-16, GB

8шт.

18

700123825

PLATE

PILOT WA clutch

1шт.

19

7852114

BUSHING,34.9mm ID x 38.1mm OD x 33.27mm L

bronze

2шт.
